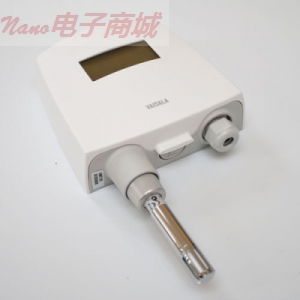

Vaisala HMT120-KC0A1C12A1B0Z 温湿度计

Vaisala HMT120-HA0A1A22A1A0Z 温湿度计

特点与露点的选项相对湿度和温度输出

探针可以容易地去除和更换，而不必调整发射器

两线制，回路供电输出配置

固定的远程探头型号

可选的液晶显示器

维萨拉HUMICAP®传感器

不同的输出量程

兼容HM70和HMI41手持式单点校准

IP65（NEMA 4）保障性

维萨拉HMT120系列变送器专为在苛刻的环境监控的湿度和温度。典型的应用包括稳定室、暖通空调、家畜、室内游泳池和室外应用。变送器可以安装在墙壁上，并配备了一个积分或远程探头，带或不带显示器。表面光滑的外壳使得它易于清洁和净化。远程探头采用镀铬铝是理想的高温应用的有限空间。

产品规格
RH范围内	0至100％
产品类型	相对湿度变送器
符合CE认证	是
湿度测量精度	在0〜40℃±1.7％RH（0〜90％RH），±2.5％RH（90〜100％RH）/ -40〜0℃，40℃〜80℃±3.0％RH（0〜90％RH）， ±4.0％RH（相对湿度90〜100％）
产量	2线4至20 mA /外部回路电压10至30 VDC（RL = 0欧姆）20至30 VDC（RL <500欧姆）
湿度传感器	维萨拉HUMICAP 180R
施工	PC / ABS塑料外壳
功率	10至35 VDC
传感器	壁挂
品牌	维萨拉
出厂编号	HMT120 HA0A1A22A1A0Z
型号	HMT120 HA0A1A22A1A0Z
商标	HMT120

Features relative humidity with the option of dew point, and temperature outputs

Probe can be easily removed and replaced without having to adjust the transmitter

Two-wire, loop-powered output configurations

Fixed and remote probe models

Optional LCD display

Vaisala HUMICAP® sensor

Different output scalings

Compatible with handheld HM70 and HMI41 for one-point calibration

IP65 (NEMA 4) protective housing

Vaisala HMT120 series transmitters are designed for monitoring humidity and temperature in demanding environments. Typical applications include stability rooms, HVAC, livestock, indoor swimming pools, and outdoor applications. The transmitters can be wall mounted and come with either an integral or remote probe, and with or without a display. The smooth surface of the enclosure makes it easy to clean and tolerates purifying agents. Remote probe is made of chrome coated aluminum and is ideal for high-temperature applications or where space is limited.

Specifications
RH range	0 to 100%
Product Type	Relative Humidity Transmitters
CE Compliance	Yes
RH accuracy	at 0 to 40C ±1.7 %RH (0 to 90 %RH), ±2.5 %RH (90 to 100 %RH) / at -40 to 0C and +40 to 80C ±3.0 %RH (0 to 90 %RH), ±4.0 %RH (90 to 100 %RH)
Output	2 wire 4 to 20 mA / External loop voltage 10 to 30 VDC (RL= 0 ohms) 20 to 30 VDC (RL< 500 ohms)
RH sensor	Vaisala HUMICAP 180R
Construction	ABS/PC plastic housing
Power	10 to 35 VDC
Sensor	Wall mount
Brand	Vaisala
Manufacturer number	HMT120-HA0A1A22A1A0Z
Model	HMT120-HA0A1A22A1A0Z
Make	HMT120
