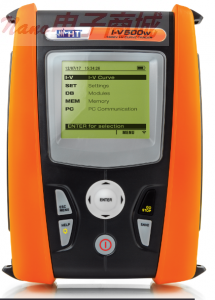

HT IV500W便携式I-V曲线测试仪

意大利HT仪器IV电压电流曲线测试仪示踪仪I-V500W特点：

1500V：适合新的光伏电站，最高1500V串联电压

结构紧凑，重量轻，仅需一人操作

多串联光伏组件自动测试

WI-FI功能：连接你的只能手机或者平板电脑对测试数据进行分析，通过免费下载的APP-HTANALYSIS

意大利HT仪器IV电压电流曲线测试仪示踪仪I-V500W基本测试参数：

功能

对光伏组件和多个串联组件测试1500v／10A-- 1000v／15A的I-V曲线检测

测量光伏组件串VOC 1500v／ISC 15a的开路电压和短路电流快速ivck测试

内存容量：200组 I-V曲线

使用USB连接solar-02 RF射频远端单元

内部PV模块数据库的自定义管理

环境温度的测量

太阳辐射测量

主要电气参数汇总表

提供软件的Windows PC接口

集成的无线网络连接和应用程序免费下载APP

背光液晶显示

自动关闭电源

重量（包括电池）1200克

第三类保护类别

尺寸（长x宽x高）（mm）235x165x75

行业规范：

EMC 2004/108/CE Directive; LVD 2006/95/CE Directive; IEC/EN 61010-1

IEC/EN61187; EMC: IEC/EN61326; IEC/EN60891; CE MARK

可选配置：

PT300N：PT1000电池温度测量探头;SOLAR-02：远程单位照度/温度

SP-0400：带颈部采用仪表;KITPVEXT25M：设置2 4mm香蕉电缆，绿/黑，25米的长度

VA400：坚固的手提箱;

Codmetel: HV00500W

I-V Curve Tracer for maintenance and troubleshooting of photovoltaic systems.

•      Measurement of I-V Curve of one or more modules or of one whole string up to 1500V/15A

•      Measurement of open-circuit voltage and short-circuit current Voc/Isc

•      Database of 30.000 selectable photovoltaic modules

I-V500w allows field detection of I-V Curve an of the main characteristic parameters both of a single module and of strings of modules for PV installations up to a maximum of 1500V and 10A or 1000V and 15A. For measuring I-V Curve, I-V500w manages an internal database of the modules, which can be updated at any time by the user and comparison between the measured data with the rated values allows immediately evaluating whether the string or the module fulfills the efficiency parameters declared by the manufacturer. I-V Curve can be measured also by decentralizing measurement of irradiation and temperature by using the optional remote unit SOLAR02, using the radio frequency connection (RF) with the master unit.

Also for I-V500w, the display at the end of the test of I-V Curve is a clear indication about the compliance with the specifications declared by the panel manufacturer.

Functions

Detection of I-V curve on PV modules and strings

1500V/10A - 1000V/15A

Quick IVCK test for measuring Voc and Isc on PV modules and strings

VOC 1500V / ISC 15A

Internal memory capacity  200 I-V Curves

Use of remote unit SOLAR-02 with USB RF connection RF

Custom management of internal PV module database

30 internal / 30.000 on software/app

Temperature measurement of cell and environment

Measurement of irradiation with reference cell

Summary table of main electric parameters

Provided PC interface with software for Windows

Integrated WiFi connection and compatibility with HTANALYSIS App

Backlit LCD display

Auto Power OFF

Weight in grams (batteries included) 1200

Protection category CAT III

Size (LxWxH) (mm)  235x165x75

Normative

•  EMC 2004/108/CE Directive;•  LVD 2006/95/CE Directive;•  IEC/EN 61010-1

•  IEC/EN61187;•  EMC: IEC/EN61326;•  IEC/EN60891;•  CE MARK
