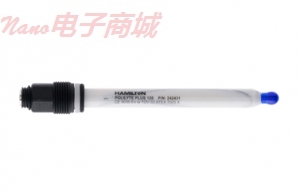

The Polilyte Plus family of pH- and ORP-electrodes is designed for harsh chemical environments or high alkaline wastewater. Liquid junction problems and total break downs are avoided by using Single Pore diaphragms. This family is the successor of the Polilyte HT. The Polilyte Plus fits into the most common housings. Available with the innovative Arc technology.
Specifications
a-length |
120 mm |
Measurement Principle |
Combination electrode; pH potential measured against reference |
Measuring Range |
pH 0 to 14 |
Sensitivity |
57 to 59 mV / pH at 25 °C |
Zero-Point |
0 ± 20 mV |
Membrane / Cap |
Hamilton Type H Glass |
Membrane Shape |
Cylindrical |
Diaphragm |
Single Pore |
Number of Diaphragms |
2 |
Electrolyte |
Polisolve Plus |
Liquid Earth |
No |
Reference System |
Hamilton Everef-L |
Temperature Sensor |
No |
pH Glass Resistance |
Moderate |
ATEX Approval |
CE 0035 II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb, CE 0035 II 1/2 D ia
IIIC T x °C Da/Db |
IECEx Approval |
CE 0035 II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb, CE 0035 II 1/2 D ia
IIIC T x °C Da/Db |
Autoclavable |
Yes, max. Temperature 130 °C |
CIP |
No |
Steam Sterilizable |
Yes, max. Temperature 130 °C |
Operating Temperature Range |
0 to 130 °C |
Pressure Range (bar g) |
0 to 16 bar (100 °C), 0 to 10 bar (130 °C) |
O-ring Material |
FKM |
Sample min Conductivity |
2 µS/cm |
Certificate |
Yes, with measured values in Buffer pH 4.01 and pH 7.00 |
Diameter |
12 mm |
Process Connection |
PG13,5 |
Electrical Connector |
S8 |
Wetted Parts |
Glass, FKM |
Serial Number |
Yes |
Recommended Storage |
Hamilton Storage Solution or 3 M KCl |
