明亮的荧光黄色微球以干粉形式供应,专门设计为密度〜1g / cc,用于悬浮在淡水中,实现流动可视化和设备中流体流动的分析。受控的粒度范围使得能够研究通过开口,过滤器和膜的最大粒径。颗粒表现出强烈的荧光响应并且在溶液中是颜色稳定的。
聚乙烯微球是疏水性的,需要在悬浮于水中之前用表面活性剂涂覆。我们推荐Tween 80 Bio-compatible Surfactant。
密度:0.99g / cc-1.01g / cc(适合悬浮于水中)
日光颜色:荧光黄
照明颜色:荧光黄绿色,具有紫外和可见光照明
尺寸范围内的颗粒:> 90%
球形颗粒:> 90%
其他颜色,尺寸和等级的荧光颗粒可供选择:
荧光聚合物颗粒,珠子,微球
其他中性浮力颗粒可用于流动可视化和PIV:
用于流动可视化和PIV的微球(1.0g / cc)
Bright fluorescent yellow microspheres are supplied in dry powder form and specifically designed with density ~1g/cc for suspension in fresh water, enabling flow visualization and analysis of fluid flow in a device. Controlled particle size ranges enable investigation of maximum particle size passing through the openings, filters and membranes.Particles exhibit a strong fluorescent response and are color stable in solution.
Polyethylene microspheres are hydrophobic and need to be coated with a surfactant prior to suspending in water. We recommend Tween 80 Bio-compatible Surfactant.
Density: 0.99g/cc-1.01g/cc (perfect for suspension in water)

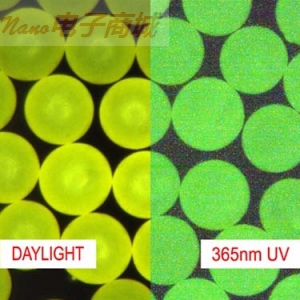

Daylight Color: Fluorescent Yellow
Illumination Color: Fluorescent Yellow-Green with UV and Visible Illumination
Particles in Size Range: > 90%
Spherical Particles: > 90%
In-stock orders ship in 1-2 business days. Please contact us for custom size ranges or volume pricing.
Other colors, sizes and grades of fluorescent particles are available:
Fluorescent Polymer Particles, Beads, Microspheres
Other neutrally buoyant particles for flow visualization and PIV are available:
Microspheres for Flow Visualization and PIV (1.0g/cc)
型号 # |
描述/尺寸 |
UVPMS-BY2-1.00 10-20um - 0.1g | Fluorescent Yellow Microspheres 1.00g/cc 10-20um - 0.1g |
UVPMS-BY2-1.00 20-27um - 0.5g | Fluorescent Yellow Microspheres 1.00g/cc 20-27um - 0.5g |
UVPMS-BY2-1.00 27-32um - 1g | Fluorescent Yellow Microspheres 1.00g/cc 27-32um - 1g |
UVPMS-BY2-1.00 32-38um - 5g | Fluorescent Yellow Microspheres 1.00g/cc 32-38um - 5g |
UVPMS-BY2-1.00 38-40um - 1g | Fluorescent Yellow Microspheres 1.00g/cc 38-40um - 1g |
UVPMS-BY2-1.00 38-45um - 5g | Fluorescent Yellow Microspheres 1.00g/cc 38-45um - 5g |
UVPMS-BY2-1.00 40-45um - 1g | Fluorescent Yellow Microspheres 1.00g/cc 40-45um - 1g |
UVPMS-BY2-1.00 45-53um - 5g | Fluorescent Yellow Microspheres 1.00g/cc 45-53um - 5g |
UVPMS-BY2-1.00 53-63um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 53-63um - 10g |
UVPMS-BY2-1.00 63-75um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 63-75um - 10g |
UVPMS-BY2-1.00 75-90um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 75-90um - 10g |
UVPMS-BY2-1.00 90-106um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 90-106um - 10g |
UVPMS-BY2-1.00 106-125um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 106-125um - 10g |
UVPMS-BY2-1.00 125-150um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 125-150um - 10g |
UVPMS-BY2-1.00 150-180um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 150-180um - 10g |
UVPMS-BY2-1.00 180-212um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 180-212um - 10g |
UVPMS-BY2-1.00 212-250um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 212-250um - 10g |
UVPMS-BY2-1.00 250-300um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 250-300um - 10g |
UVPMS-BY2-1.00 300-355um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 300-355um - 10g |
UVPMS-BY2-1.00 355-425um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 355-425um - 10g |
UVPMS-BY2-1.00 425-500um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 425-500um - 10g |
UVPMS-BY2-1.00 500-600um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 500-600um - 10g |
UVPMS-BY2-1.00 600-710um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 600-710um - 10g |
UVPMS-BY2-1.00 710-850um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 710-850um - 10g |
UVPMS-BY2-1.00 850-1000um - 10g | Fluorescent Yellow Microspheres 1.00g/cc 850-1000um - 10g |
UVPMS-BY2-1.00 1.0-1.2mm - 10g | Fluorescent Yellow Microspheres 1.00g/cc 1.0-1.2mm - 10g |
|
|
| |||||||||||||||||||
|
|
