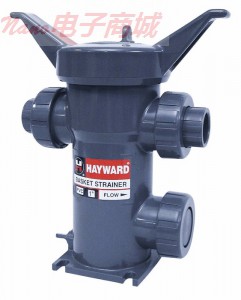

SB1150ST PVC单面篮式过滤器

SB1150ST PVC单面篮式过滤器

       除去粗固体的理想产品，

    低压降但又具有较强的适应力

    篮便于取出清洗或更换

    灵活的接口能是您轻松将过滤器从集成工业流水线中取下

    保护管道和工程设备免受灰尘和碎屑损害。当流体通过过滤器时多孔筐滤出有害微粒。适合用于产业加工水，油，油漆，化工，食品。过滤器材料为PVC，包括氟橡胶密封。1/2"，3/4"和1"过滤器包括一个1/32"的多孔筐;1-1/2"到4"过滤器包括一个1/8"的多孔筐。过滤篮可以单独订购。

 Ideal product for the removal of crude solids

 Low pressure drop with large straining capacity

 Basket easily lifts out to clean or replace

 True union connections permit easy removal of strainer assembly from process line

 Protect pipes and process equipment from dirt and debris. The perforated baskets catch unwanted particles as the fluid passes through the strainer. Suitable for use in industries processing water, oil, paint, chemicals, or food.

 Strainers are made of PVC and include FPM seals. The 1/2", 3/4", and 1" strainers include a 1/32" perforated basket; the 1-1/2" to 4" strainers include a 1/8" perforated basket. Extra baskets may be ordered separately below.

产品规格

产品类型 过滤器，篮

大小 1-1/2"

端部连接 螺纹

流量系数 58.0CV

尺寸 12.69“的x 13.38”宽x 13.5“x 3.25英寸宽x 9.5”E x 6.13英寸F X 12.86“x 15.89英寸ħ

牌 海沃德

模型 SB1150ST

制造商编号 SB1150ST

Specifications

Product Type Strainers, Basket

Size 1-1/2"

End connection Threaded

Flow coefficient 58.0 Cv

Dimensions 12.69"A x 13.38"B x 13.5"C x 3.25"D x 9.5"E x 6.13"F x 12.86"G x 15.89"H

Brand Hayward

Model SB1150ST

Manufacturer number SB1150ST
