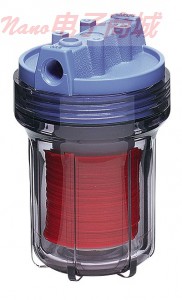

038A-2300 可重复使用的水过滤元件的外壳

038A-2300 可重复使用的水过滤元件的外壳

  可清洗再用

    预过滤器，这些新的元素，为自己付出的延长寿命的传统过滤器。一个快速的清洗和冲洗过滤元件，以恢复其原来的状态，为您节省过滤器更换和处理的成本。当颗粒的外表面，只是删除了元素的住房，洗它，并返回它的住房没有所需的工具。元素是由数百种薄聚丙烯（PP）开槽盘停止防止光盘滑落核心，并允许进行彻底清洗。停机时间约5分钟。
   更精细的过滤需求，选择50微米的元素。要删除最明显的固体水，使用100微米的元素。对于那些时候，是必需的，只有相对粗过滤使用200微米的元素。
各种元素的大小和住房样式，以满足您的需求。选择10“，10”，20“10”和10“的元素元素的长度。来完成，准备用自己的苯乙烯丙烯腈（SAN）住房和PP双开端盖。
   选择“20”元素较大的工作。特殊设计安全地连接两个10“的元素在SAN外壳用PP双开端盖。
    使用10“的元素没有与您现有的双开高档住房的外壳，或选择从各种12 1/16”H，双开口第256页。外壳上
    的最大压力在65°F（18°C）是125磅。外壳最高温度为125°F（52°C）;的元素的最高温度为190°F（88°C）。

      Washable and reusable

    Used as prefilters, these new elements pay for themselves by extending the life of conventional filters. A quick wash and rinse restores the filtration elements to their original condition—saving you most of the cost of filter replacement and disposal. When particles build up on the outer surface, just remove the element from the housing, wash it, and return it to the housing—no tools required. Elements are made of hundreds of thin polypropylene (PP) grooved discs; a stop prevents discs from sliding off the core and allows for thorough washing. Downtime is approximately 5 minutes.
For finer filtration needs, select the 50-µm element. To remove most visible solids from water, use the 100-µm element. For those times when only relatively coarse filtration is required, use the 200-µm element.
A variety of element sizes and housing styles are available to meet your needs. Choose 5", 10", or 20" element lengths. The 5"and 10" elements come complete and ready to use with their own styrene acrylonitrile (SAN) housing and PP double open end cap.
    Select the 20" element for larger jobs. A special design securely connects two 10" elements in SAN housings with a PP double open end cap.
    Use the 10" elements without housings with your existing double open end housing or choose from a variety of 12 1/16" H, double open end housings on page 256.
    Maximum pressure at 65°F (18°C) is 125 psi. Maximum temperature for the housings is 125°F (52°C); maximum temperature for the elements is 190°F (88°C).
