vacuum pump exhaust filters真空泵排气过滤器

真空泵排气过滤器

    消除99.9％真空泵排气油雾和烟雾

    在管道系统中防止油积累

    消除潜在的侵犯OSHA和EPA

    保护真空泵和减少昂贵的维护

   我们的真空泵排气过滤器易于安装和维护。模型02918-00和02918-10可以删除的o.1μm油雾和烟颗粒的

99.9％，并在相对低浓度的亚微米粒子保护泵不受损坏。型号02918-00有害/腐蚀性的应用而设计的。02918-

10和02918-20是专为non-hazardous/non-corrosive应用和高流量的应用。型号02918-20不锈钢外壳与“不

扩散核武器条约”进口，出口和泄油口（1/8“NPT）。所有的过滤器提供卓越的耐化学品和溶剂。真空泵过滤器，

提高工作效率，消除代价高昂的停机时间和维护。过滤器是一次性的，并可以在不同的外壳材料。对于大多数应

用，只要选择的过滤器组件，它有一个流量的容量等于或大于的真空泵排气流量输出。过滤器组件附带的滤芯和最

后的过滤垫。

      Eliminate 99.9% oil mist and smoke from vacuum pump exhaust

      Prevent oil accumulation in ductwork

      Eliminate potential OSHA and EPA violations

      Protect vacuum pumps and reduce costly maintenance

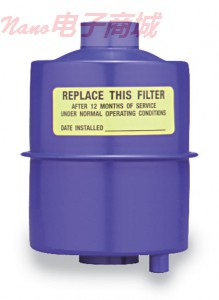

    Our vacuum pump exhaust filters are easy to install and maintain. Model 02918-00 and 02918-10 can remove 99.9% of o.1µm oil mist and smoke particles, and protect pump from damage by submicron particles at relatively low concentrations. Model 02918-00 is designed for hazardous/corrosive applications. Model 02918-10 and 02918-20 are designed for non-hazardous/non-corrosive applications and higher flow applications. Model 02918-20 has steel housing with NPT inlet, outlet and drain ports (1/8” NPT). All filters offer superior chemical and solvent resistance. The vacuum pump filters increase productivity by eliminating costly shutdown time and maintenance. Filters are disposable, and available in different housing materials. For most applications, simply select the filter assembly which has a flow capacity equal to or greater than the vacuum pump exhaust flow output. The filter assemblies are shipped with filter cartridges and final filter pad.
