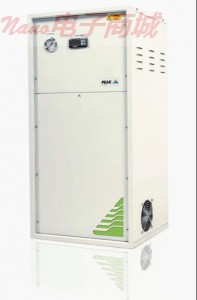

The gas produced by this range of generators exceeds performance levels of Zero Air and is ideal for a wide variety of air emission applications. Gas is generated by both catalytic oxidation and a proprietary regenerative sieve. Coalescing pre-filters and a final filter ensure continuous gas purity.
The CG models are the choice for properly zeroing emissions gas analysers during calibration and meet the requirements of Federal Register Specification 40CFR 86.114-79.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Features & Benefits:
Qualified – Meets requirements of Federal Register Specification 40CFR 86.114-79
Purity – Continuous high purity calibration gas for emissions monitoring
Durable – Few moving parts with minimum maintenance requirements
Quiet – Completely silent in operation
Mobile – Flexibility to position generator where required
Simple Installation – Generator only needs to be connected to the air source and application
Economical – More cost effective than any other gas supply method
Convenient - Gas on demand, no health hazards, no need to worry about running out of gas
Technical
Specifications
|
|
CG15L |
CG22L | |
|
Calibration Gas |
15 L/min |
22 L/min | |
|
Pressure Dewpoint |
-70°C / -94°F | ||
|
Required Inlet Air Pressure |
4-8 bar | ||
|
Required Inlet Flow |
27 L/min |
44 L/min | |
|
Warm Up time for spec. THC |
30 mins | ||
|
Gas Outlets |
1x 1/4” BSP Female | ||
|
Electrical Requirements |
220v 4.5A / 120v 5.0A |
220v 8.8A / 120v 9.5A | |
|
Power Consumption |
220v 1100 watts / 120v 540 watts |
220v 2090 watts / 120v 1056 watts | |
|
Dimensions (cm / ins) WxDxH |
62 x 43 x 41 / 24 x 17 x 16 |
88 x 43 x 41 / 35 x 17 x 16 | |
|
Weight (kg / lbs) |
58 / 128 |
73 / 161 | |
