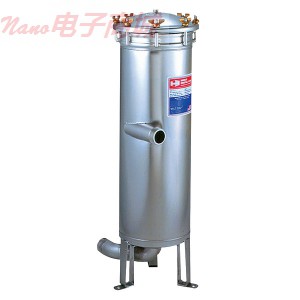

Stainless Steel Filter Housing150 GPM（568 LPM）过滤器外壳

150 GPM（568 LPM）过滤器外壳

 组合滤芯过滤器和离心分离机延长硒鼓的使用寿命和降低维护

    切向进入升流式设计，防止空气滞留

    工艺流程率高达150 GPM（568 LPM）

   电抛光304不锈钢外壳与安全的关闭是NSF 61上市

   这些外壳的独特设计，集成了两个过滤技术于一体。流体进入的切向进气口进入的外腔室，其中较重的固体离心

分离发生。然后，流体被引导到的内室，用于通过滤筒过滤。最初的分离的固体延伸盒的寿命并降低使用的整体成

本。优异的耐腐蚀性能，304不锈钢外壳电解抛光。顶部封闭蝶形螺母固定，所以没有任何工具都需要维修。2“不

扩散核武器条约”的入口和出口接头1/4“NPT（F）压力表安装耦合器。一个排放接头可以手动或自动清除删除的外室分离

出来的固体。


   房屋所有尺寸的接受一个单一的，高容量的墨盒，很容易安装。与传统的墨盒，这些功能深，倾斜的褶皱，有效地集中流入

的褶皱区域更高效的固体去除。三种类型的墨盒。百褶聚酯墨盒是通用墨盒提供长寿命和高纳污能力。聚酯墨盒

清洁和可重复使用的，在大多数应用中，，NSF 61列。抗菌墨盒，交织银沸石褶聚酯纤维。相互交织的纤维对藻

类确保持久的保护，产生气味的细菌，霉菌，与硒鼓表面上的生物膜，否则可能会增长。的百褶聚丙烯墨盒是

100％聚丙烯，提供高流速和低的压降。要求绝对额定褶过滤的应用的理想选择。硒鼓组件热粘合高强度分别购买

墨盒。

Combination cartridge filter and centrifugal separator extends cartridge life and reduces maintenance

Up-flow design with tangential entry prevents air entrapment

Process flow rates up to 150 GPM (568 LPM)

Electropolished 304 stainless steel housing with secure closure is NSF 61 listed

    The unique design of these housings incorporates two filtration technologies in one. Fluid enters a tangential inlet into an outer chamber where centrifugal separation of heavier solids takes place. The fluid is then directed into the inner chamber for filtration through the cartridge. The initial separation of solids extends cartridge life and lowers the overall cost of use. Housings are electropolished 304 stainless steel for excellent resistance to corrosion. Top closure is secured with wing nuts so that no tools are required for maintenance. The 2" NPT inlet and outlet fittings include 1/4" NPT(F) couplers for pressure gauge installation. A drain fitting allows for either manual or automatic purge of the outer chamber to remove separated solids.
   All sizes of housing accept a single, high-capacity cartridge that is easy to install. Unlike conventional cartridges, these feature deep, angled pleats that effectively concentrate flow into the pleated area for more efficient solids removal. Three types of cartridges are available.
   Pleated Polyester Cartridges are general purpose cartridges offering long life and high dirt holding capacity. Polyester cartridges are cleanable and reusable in most applications and are NSF 61 listed.
    Antimicrobial Cartridges are pleated polyester with interwoven silver zeolite fibers. The interwoven fibers ensure long-lasting protection against algae, odor-causing bacteria, mold, mildew, and biofilms that might otherwise grow on the cartridge surface.
    Pleated Polypropylene Cartridges are 100% polypropylene and offer high flow rates and low pressure drops. Ideal for applications requiring absolute-rated pleated filtration. Cartridge components are thermally bonded for high strength.
Purchase cartridges separately.
