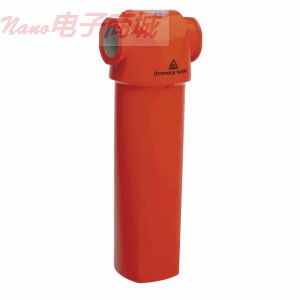

Parker AO-015BNFI 尼克汉德空气预滤器

Parker AO-015BNFI 尼克汉德空气预滤器

先进的气流技术，这是最高效节能的压缩空气过滤系统

   预过滤器和微型过滤器，具有内部持股量流失，易于安装和节省初始投资成本

  事件监控（包括上大部分机型）向您发出警报高压差和过滤器元件变化的需要

   房屋是完全腐蚀保护，并进行了10年的保修期

   这些模块化的过滤器是高效率的答案，您的压缩空气过滤需求。过滤器壳体是Alocrom处理的铝具有高品质的干

粉末环氧面漆。外壳在正常工作条件下，进行了10年的保修期。这些过滤器达到或超过预过滤器是最新的国际标

准ISO 8573.1空气质量标准。深床褶疏油纳米纤维颗粒去除1微米，包括水和油气溶胶。最大剩余油气溶胶含量

为0.5 ppm在70°F（的0.6 MG/M3在21°C）。微过滤床深褶疏油的纳米纤维交付下降到0.1微米，包括水和油

气溶胶粒子去除。的最大剩余油气溶胶含量是0.1 ppm在70°F（21°C时为0.01 MG/M3）。活性炭吸附气体，

气态烃和气味过滤器使用活性炭深床元素，墨盒也提高剩余油的去除在组合使用时的微型过滤器。最大残留油蒸汽

的含量为0.003 ppm在70°F（的0.003 MG/M3在21°C）。使用可选的安装夹具串联安装在相邻的过滤器。还安

装夹子作为壁挂式安装支架，以尽量减少相关联的硬件的功能。

    Advanced airflow technology makes this the most energy efficient compressed air filtration system available

    Prefilters and microfilters feature an internal float drain that eases installation and saves initial cost

   Incident monitor (included on most models) alerts you to high differential pressure and need for filter element change

   Housing is fully corrosion protected and carries a 10-year warranty

   These modular filters are the high-efficiency answer to your compressed air filtration needs. The filter housing is Alocrom-treated aluminum with a high-quality dry powder epoxy finish. Housings carry a 10-year warranty under normal operating conditions. These filters meet or exceed the latest International ISO 8573.1 air quality standard.
   Prefilters are deep bed pleated oleophobic nanofiber delivering particle removal down to 1 micron—including water and oil aerosols. Maximum remaining oil aerosol content is 0.5 ppm at 70°F (0.6 mg/m3 at 21°C).
  Microfilters are deep bed pleated oleophobic nanofiber delivering particle removal down to 0.1 micron—including water and oil aerosols. Maximum remaining oil aerosol content is 0.1 ppm at 70°F (0.01 mg/m3 at 21°C).
  Activated Carbon Filters use a deep-bed activated carbon element to adsorb vapors, gaseous hydrocarbons, and odors; cartridges also enhance residual oil removal when used in combination with microfilters. Maximum remaining oil vapor content is 0.003 ppm at 70°F (0.003 mg/m3 at 21°C).
  Use optional mounting clamps to join adjacent filters mounted in series. Mounting clamp also functions as a wall-mounting bracket to minimize associated hardware.
