Cole-Parmer® 化工给料系统,pH值控制器,带有两个泵,每台泵能0.6 GPH(LPH 2.2),150 psi(10.3巴),115伏交流,50/60赫兹

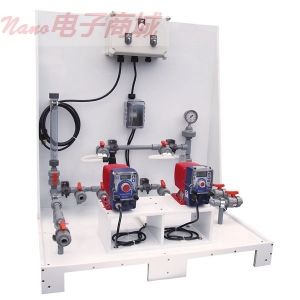

Cole-Parmer Chemical Feed System, pH Controller with Two Pumps, each pump capable of 0.6 GPH (2.2 LPH), 150 PSI (10.3 bar), 115 VAC, 50/60 Hz
Complete and preassembled chemical feed system where 24/7 use is required
Shipped complete - "plug and play" installation is as simple as providing power and fluid connections
Pump(s) mounted on a PVC based skid—choose from multiple configurations
Preconfigured systems are designed for use in either pH or ORP applications
Systems will include metering pumps from Walchem. Other manufacturers such as PulsaFeeder or LMI can easily be substituted by calling one of our Application Specialists.
The skid is available in either single- or dual-pump configuration and is preplumbed for easy installation. All you have to do is to hook up the fluid and power connections.
pH systems inject acid or base into your fluid system to maintain a desired set point. If a more accurate and reliable measurement system is needed, we offer an ORP controller based system that can also adjust the measured fluid by adding acid and/or base.
Although these preconfigured systems are designed for use in either pH or ORP applications, any number of custom configurations is achievable. These redesigns can be accomplished with a simple phone call to our Application Specialists to ensure that all of your system needs are met.
Specifications | ||
Product Type | Metering Pump System | |
Wetted parts | Pump head and fittings: glass fiber-reinforced polypropylene (GFRPP) Diaphragm: PTFE bonded to EPDM Ball check valves: alumina ceramic Seals: flouroelastomer O-rings: PTFE | |
Max pressure (psi) | 150 | |
Max pressure (bar) | 10.3 | |
Max flow rate (LPH) | 0.6 | |
Max flow rate (GPH) | 2.2 | |
Max viscosity (cp) | 100 | |
Dimensions | 91.4 x 61 x 76.2 cm (W x H x L) | |
Dimensions (" H) | 24 | |
Dimensions (" W) | 36 | |
Dimensions (" L) | 30 | |
Power (VAC) | 115 | |
Power (Hz) | 50/60 | |
Repeatability | ±1% full-scale | |
Duty cycle | continuous | |
Suction lift (dry) | 5 ft (1.5 m) | |
Max temperature (º C) | 50 | |
Max temperature (º F) | 122 | |
Shipping weight (lbs) | 150 | |
Shipping weight (kg) | 68 |
完整和预装配的化学饲料系统中需要使用的24/7
发货完成 - “即插即用”的安装简单,只要提供电力和流体连接
泵(S)上安装一个基于PVC防滑从多个配置选择
预配置的系统被设计用于在任一pH值或氧化还原电位的应用
系统将包括计量泵Walchem。可以很容易地取代其他厂商如PULSAFEEDER或LMI调用我们的应用专家之一。防滑提供单一或双泵配置和是preplumbed便于安装。所有你必须做的是挂钩的流体和电源连接。pH体系注入酸或碱流体系统,以维持所需的设定点。如果需要更准确和可靠的测量系统中,我们提供了一个基于ORP控制器的系统,还可以通过加入酸和/或碱调整被测流体。尽管这些预配置的系统设计用于在任一pH值或氧化还原电位的应用程序的使用,任何数量自定义配置是可以实现的。这些重新设计,可以实现用一个简单的电话到我们的应用专家,以确保符合所有的系统需求。
产品规格 | ||
产品类型 | 计量泵系统 | |
接液部件 | 泵头及配件:玻璃纤维增强聚丙烯(GFRPP) 隔膜:PTFE保税EPDM 球型止回阀:氧化铝陶瓷 密封件:flouroelastomer O形圈:PTFE | |
最大压力(psi) | 150 | |
最大压力(bar) | 10.3 | |
最大流量(LPH) | 0.6 | |
最大流量(GPH) | 2.2 | |
最大粘度(cp) | 100 | |
尺寸 | 91.4×61×76.2厘米(宽x高x长) | |
尺寸(“H) | 24 | |
外形尺寸(W) | 36 | |
外形尺寸(L) | 30 | |
电源(VAC) | 115 | |
功率(赫兹) | 50/60 | |
重复性 | ±1%满量程 | |
占空比 | 连续 | |
吸程(干) | 5英尺(1.5米) | |
最高温度(°C) | 50 | |
最高温度(ºF) | 122 | |
运输重量(磅) | 150 | |
运输重量(公斤) | 68 |
|
|
| |||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||
|
|
|
| ||||||||||||||||||||||||
|
|
|
