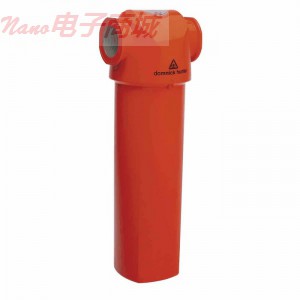

Parker AO-010ANFX 多明尼克汉德空气预滤器

Parker AO-010ANFX 多明尼克汉德空气预滤器

  先进的气流技术，使最高效节能的压缩空气过滤系统

   预过滤器和微型过滤器具有内部浮漏，易于安装和节省初始成本

   事件监听器（包括大多数型号）提醒您高压差和需要滤芯变化

   房屋是完全腐蚀保护，并进行了10年的保修期

   这些模块化的过滤器是高效率的压缩空气过滤需要的答案。过滤器壳体是Alocrom处理的铝与高品质的干粉末环

氧面漆。外壳在正常工作条件下，进行了10年的保修期。这些过滤器最新的国际标准ISO 8573.1空气质量标准达

到或超过预过滤床深褶疏油纳米纤维下降到1微米，包括水和油气溶胶粒子去除。在70°F（0.6 MG/M3 21°

C）。微过滤床深褶疏油下降到0.1微米，包括水和油气溶胶粒子去除纳米纤维提供最大残留油份含量为

0.5ppm 。在70°F（21°C）0.01 MG/M3最大残留油份含量为百万分之0.1。活性炭过滤器使用活性炭深床元素

吸附气体，气态烃和异味;墨盒也提高剩余油去除结合使用时，与微型过滤器。在70°F（0.003 MG/M3在21°C）

最大残留油蒸汽的含量为百万分之0.003。加入相邻过滤器串联安装在使用可选的安装夹具。安装夹墙壁安装支

架，以尽量减少相关的硬件功能。

   Advanced airflow technology makes this the most energy efficient compressed air filtration system available

    Prefilters and microfilters feature an internal float drain that eases installation and saves initial cost

    Incident monitor (included on most models) alerts you to high differential pressure and need for filter element change

   Housing is fully corrosion protected and carries a 10-year warranty

   These modular filters are the high-efficiency answer to your compressed air filtration needs. The filter housing is Alocrom-treated aluminum with a high-quality dry powder epoxy finish. Housings carry a 10-year warranty under normal operating conditions. These filters meet or exceed the latest International ISO 8573.1 air quality standard.
   Prefilters are deep bed pleated oleophobic nanofiber delivering particle removal down to 1 micron—including water and oil aerosols. Maximum remaining oil aerosol content is 0.5 ppm at 70°F (0.6 mg/m3 at 21°C).
   Microfilters are deep bed pleated oleophobic nanofiber delivering particle removal down to 0.1 micron—including water and oil aerosols. Maximum remaining oil aerosol content is 0.1 ppm at 70°F (0.01 mg/m3 at 21°C).
   Activated Carbon Filters use a deep-bed activated carbon element to adsorb vapors, gaseous hydrocarbons, and odors; cartridges also enhance residual oil removal when used in combination with microfilters. Maximum remaining oil vapor content is 0.003 ppm at 70°F (0.003 mg/m3 at 21°C).
Use optional mounting clamps to join adjacent filters mounted in series. Mounting clamp also functions as a wall-mounting bracket to minimize associated hardware.
