Advantec 6科3通阀真空过滤歧管

Advantec 6科3通阀真空过滤歧管

 显着减少处理时间相比，重力方法

   双三通阀设有PTFE活塞平稳控制

    在每个分支提供独立控制阀真空和排气

    一个真空源连接三个或六个过滤器持有人


    三通阀，让你发泄到大气中，而不破坏真空连接分支

    三通阀口是一个女性的接受的标准的注射器过滤器的路厄氏滑动连接

   不锈钢流形PTFE阀为每个分支提供单独控制的真空排气。分行没有接受。8瓶塞。3/8“ID真空管

无菌测试歧管设有一个额外的冲洗歧管无菌缓冲带1/4“软管倒钩连接冲洗歧管软管倒钩适配器接受。使用无菌试验

过滤器支架06645-98。高压灭菌。

   站点之间的距离是4.75英寸（12厘米）。

   Significantly reduce process time compared to gravity methods

    Two- and three-way valves feature PTFE stopcocks for smooth control

    Valves provide independent control at each branch for vacuum and venting

    Connect three or six filter holders to one vacuum source

    Three-way valve enables you to vent the branch to atmosphere without breaking the vacuum connectio

    Three-way valve vent is a female luer slip connection to accept a standard syringe filter

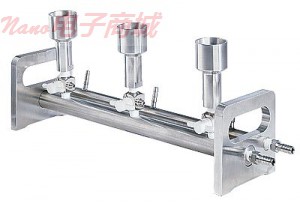

   Stainless Steel Manifolds have PTFE valves for each branch to provide individual control of vacuum and air venting. Branches accept no. 8 stoppers. Hose barb adapter accepts 3⁄8" ID vacuum tubing.
   Sterility Test Manifolds feature an extra flushing manifold for sterile buffer with a 1⁄4" hose barb connection to flushing  manifold. Use with sterility test filter holder 06645-98. Autoclavable.
   Distance between stations is 4.75" (12 cm).
