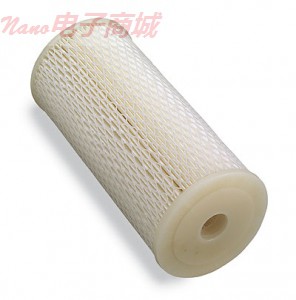

Big Blue 155405-43 打褶的纤维素真空过滤器

Big Blue 155405-43 打褶纤维素真空过滤器

百褶墨盒分离粘性沉积物和扁平颗粒。使用聚酯墨盒更严厉的化学品水过滤和聚丙烯墨盒。塑料溶胶端盖 注：墨 ​​盒泥沙过滤;他们不会删除bacteria.This设计，提供更高的流速和污物装载能力比纺或伤口深度墨盒，尤其是当去除较低微米大小的颗粒。使用这些以除去非凝胶状颗粒落入较窄的粒径范围内，典型地在后过滤或抛光应用。通用的聚酯纤维或聚丙烯，这两种类型的非织造布的设计，给他们一个梯度的孔隙结构。选择取决于化学兼容性要求。聚酯墨盒适用于125°F（52°C），PP适用于145°F（63°C）。50微米盒NSF标准42认证材料。经济纤维素，纤维素是一种低成本的不良选项预处理水域。因为纤维素是易受化学和生物攻击，这些更适合于较低的氯浓度的化学中性的水。适用于145°F（63°C）。额外的强度聚酯纤维素。纤维素盒提高湿强度聚酯混合，但具有更低的成本比纯净，非纤维素设计。的聚酯材料，可以让更多的褶，以改善流动性和污垢加载。适用于125°F（52°C）。

   Pleated cartridges separate viscous sediments and flat particulates. Use polyester cartridges for water filtration and polypropylene cartridges with harsher chemicals. Plastisol end caps.
   Note: Cartridges are for sediment filtration only; they will not remove bacteria.This design offers higher flow rates and dirt-loading capacities than spun or wound depth cartridges, especially when removing lower micron-sized particles. Use these to remove non-gelatinous particles that fall into a narrow size range, typically in post filtration or polishing applications.

   General Purpose Polyester or Polypropylene. Both types are non-woven designs giving them a graded pore structure. Choose either depending on chemical compatibility requirements. Polyester cartridges are suitable to 125°F (52°C); PP suitable to 145°F (63°C). The 50-micron cartridge is certified to NSF Standard 42 for materials.

   Economical Cellulose. Cellulose is a low-cost well-performing option for pretreated waters. Because cellulose is susceptible to chemical and biological attack, these are better suited for chemically neutral waters with lower chlorine concentrations. Suitable to 145°F (63°C).

   Extra-Strength Cellulose-Polyester. This cellulose cartridge is blended with polyester for improved wet strength, and yet has a lower cost than pure, non-cellulose designs. The polyester material allows more pleats to improve flow and dirt loading. Suitable to 125°F (52°C).
