使你的组织准备更容易,更安全,更高效
实时时钟提供审计日志记录的时间和日期戳
数字温度传感器不需要用户校准
两个型号,根据样本大小的选择
低矮便于用户舒适度
这些单位提供了一个理想的用户体验,考虑到所有的解决方案在组织准备。明亮的隐藏式LED阵列提供高对比度的背景观看不刺眼。您可以设定仪器,当您到达工作台时开启,您离开时关闭。稳微处理器与温度传感器探头将控制温度调节器环境到65 C(149 F)。温度传感器安全切断开关将无法开启加热器,除非探头正确就位浴确保高可靠性和耐磨损。坚固的KYDEX ®塑料外壳耐热,可承受激烈的化学品和划痕。
所有型号都配备一个可拆卸的玻璃盘,便于清洗和处理。根据样品和色带大小取决选择哪种型号。标准尺寸有额外的深度,解除部分不结转。使用更长的器皿以及丝带。订购载玻片干燥槽加快干燥和存储吸墨纸。
组织浮选工作中心还包括一个内置的2“×8”对流滑盖机进行监测,通过微处理器稳压器和加快了工作流程。该2“×2”内置的组织学定位仪去掉皱纹和变平的部分样品制备过程。
组织浮选浴槽提供相同功能和特点的组织浮选工作中心,上面没有的组织学定位仪和载玻片干燥机。
包含: 6英尺电源线和插头。
Make your tissue preparation easier, safer and more efficient
Real time clock provides time and date stamps for audit logging
Digital temperature sensor does not require user calibration
Choose from two dish models depending on sample size
Low-profile for user comfort

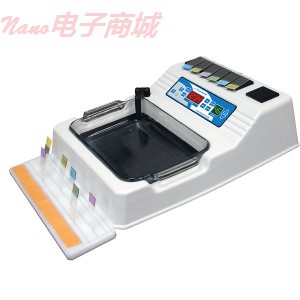

These units provide an ideal user experience with all solutions in mind for tissue preparation. The bright recessed LED array provides high contrast background for improved tissue viewing without glare. You can program your instrument to turn on when you arrive at your station and turn off when you leave for the day. The microprocessor regulator with temperature sensor probe will control temperatures from ambient up to 65°C (149°F). The temperature sensor safety cut-off switch will not turn on heater unless probe is seated properly in the bath—ensuring high reliability and resistance to wear and tear. Robust Kydex® plastic housing is heat-resistant and will stand up to harsh chemicals and scratches for years of use.
All models come with a removable glass dish for easy cleaning and handling. Choose from two designs depending on sample and ribbon sizes. The standard size has extra depth to lift sections without carryover. Use the long dishes for longer ribbons. Order a slide drying trough to accelerate drying and store blotting paper.
Tissue Flotation Work Centers also include a built-in 2" x 8" convection slide dryer that is monitored through the microprocessor regulator and speeds up workflow. The 2"x 2" built-in histology
orientator eliminates wrinkles and flattens sections during sample preparation.
Tissue Flotation Baths provide all of the same functions and features as the tissue flotation work centers above without the histology orientator and slide dryer.
What's Included:
6-ft power cord and plug.
产品规格 |
|
产品类型 |
组织浮选工作中心 |
长度 |
18-3/4“ |
宽度 |
15“ |
高度 |
5-1/4“ |
天线的大小 |
8“×11”×2“(20.3
x 27.9 x 5厘米) |
载玻片干燥机/皱纹定位仪 |
是 |
尺寸 |
47.6 x 38.1 x 13.3 cm (长x宽x高) |
电源(VAC) |
220到240 |
功率(赫兹) |
50/60 |
功率(安培) |
5.4 |
生产编号 |
FWS-L-220-CP |
品牌 |
科尔 - 帕默 |
符合CE认证 |
是 |
Specifications |
|
Product Type |
Tissue Flotation Work Center |
Length |
18-3/4" |
Width |
15" |
Height |
5-1/4" |
Dish size |
8" x 11" x 2" (20.3 x
27.9 x 5 cm) |
Slide dryer/wrinkle orientator |
Yes |
Dimensions |
47.6 x 38.1 x 13.3 cm (L x W x H) |
Power (VAC) |
220 to 240 |
Power (Hz) |
50/60 |
Power (Amps) |
5.4 |
Manufacturer number |
FWS-L-220-CP |
Brand |
Cole-Parmer |
CE Compliance |
Yes |
|
|
|
|
