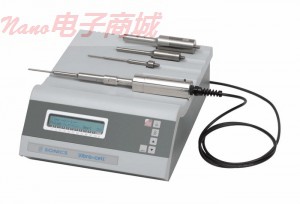

Cole-Parmer VCX-130PB-220V 超声波处理器

Cole-Parmer VCX-130PB-220V 超声波处理器

超声波处理低流量应用150微升至150毫升

完整的函数脉冲和计时器（型号04714-50 -51）

拇指驱动脉冲发生器（型号04714-52和-53）

100％的微处理器控制

处理器是微处理器控制的，自动调谐，而不必不断调整。该数字功率计显示传递到探头的功率量。变量输出功率控制允许超声波探测器尖端振动被设置为任何想要的振幅

型号04714-50 -51设有一个定时器，该定时器控制处理时间从1秒至10小时，和一个脉冲发生器，以使安全处理温度敏感的样品。

型号04714-52和-53机头采用高强度脉冲按钮。按下按钮时，单位可以连续运行或在脉冲模式

包含：型号04714-50和-51包括一个6毫米（1/4“）钛探头和尖端，脚踏开关连接器。型号04171 - 52和-53包括3毫米（1/8“）钛探头和尖端。所有单位都设有一个工具包，转换器一个内置探头停留在顶部的单位和6英尺长电源线带接地插头（欧洲插头220VAC型号）。其它尺寸的探头可用于不同的样品体积范围见右表的附件。

产品规格

产品类型超声波处理器

描述超                  声波处理器，与热闹的按钮，220 VAC

最小样本量（毫升）      0.15

最大样本量（毫升）      130

电源（VAC）             220

功率（赫兹）            50/60

外形尺寸（W）           9.75

尺寸（“H）             3.5

尺寸（“D）             12.5

显示                    液晶显示

品牌                    科尔 - 帕默

生产编号                VCX-130PB-220V

Ultrasonic processing for low volume applications—150 µL to 150 mL

Full function pulse and timer (on models 04714-50 and -51)

Thumb actuated pulser (on models 04714-52 and -53)

100% microprocessor controlled

Processors are microprocessor controlled and feature automatic tuning to eliminate the need for constant adjustment. The digital wattmeter displays the amount of power delivered to the probe. The variable power output control allows the ultrasonic vibrations at the probe tip to be set to any desired amplitude.

Models 04714-50 and -51 feature a timer that controls the processing time from one second to 10 hours and a pulser to enable safe treatment of temperature-sensitive samples of high intensity.

Model's 04714-52 and -53 handpiece incorporates a pulsing button. The units can be run continuously or in the pulse mode when the button is depressed.

What's Included:

Models 04714-50 and -51 include a 6 mm (1⁄4") titanium probe and tip, and foot switch connector.

Models 04171-52 and -53 include a 3 mm (1⁄8") titanium probe and tip.

All units include a tool kit, converter; a built-in probe rests on top of the unit and 6-ft cord with grounded plug (European plug on 220 VAC models). Other sizes of probes are available for different sample volume ranges see accessories listed at right.

Specifications
Product Type	Ultrasonic Processor
Description	Ultrasonic Processor, with pulsing button, 220 VAC
Min sample size (mL)	0.15
Max sample size (mL)	150
Watts	130
Power (VAC)	220
Power (Hz)	50/60
Dimensions (" W)	9.75
Dimensions (" H)	3.5
Dimensions (" D)	12.5
Display	LCD
Brand	Cole-Parmer
Manufacturer number	VCX-130PB-220V
