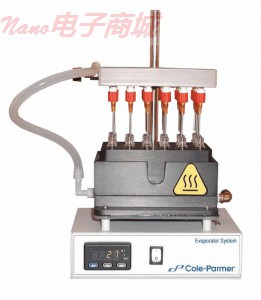

Cole-Parmer 099AEV2412S 加热蒸发器/集中器

Cole-Parmer 099AEV2412S 加热蒸发器/集中器

针头提供相同的气体流速，可进行更快更连续的样本蒸发处理

在紧凑的仪器中就能进行经济而可靠的蒸发

模型可以适用于不同尺寸的试管和微孔管

能够快速蒸发一般的有机可溶物-可应用于医药，环境，高效液相色谱仪，质谱仪和大部分仪器的应用。针头阀控制流动到均衡器里面的气体量，这就能保证到每一个管子里都有相同的气体流通量和均匀蒸发。每一个针头都由15个不锈钢制成的高度调节器来处理一系列样本的尺寸。加热的蒸发器能够进行8到24种样本的测量，并且能够适用12到16微米的直径。这台设备有一个加热器，以确保更快的蒸发。在放入样本之前，通过加热气体，能够保证样本的温度维持住。该仪器还含有嵌入式控制加热器，样本盛放装置和针头。

规格

加热蒸发器管子的数量             24

浴槽温度                         周围温度大概212华摄氏度（约100摄氏度）

温控准确率                       0.25%

显示                             4位数字二极管显示器

频率                             50/60

温度范围                         周围温度大概212华摄氏度（约100摄氏度）

大小                             宽长高（  7.5"x 5.5" x 5"）

冷凝器类型                       加热蒸发器

气流                             40 L/min

电压                             120

生产商编号                       099AEV2412S

品牌                             Cole-Parmer

Indivdual needles provide equal flow of gas for faster, consistent evaporation of samples

Economical and reliable evaporation in a compact instrument

Models available to accommodate different-sized tubes and microwell plates

Rapidly evaporate common organic solvents—ideal for pharmaceutical, environmental, HPLC, GCMS, and general research applications. Needle valve controls the flow of gas into the equalizer manifold, which provides equal gas flow and uniform evaporation to each well. Needle valves ensure control for fast concentration of multiple samples. Each needle is made from 15-gauge stainless steel with easy height adjustment to accommodate a variety of sample sizes.Heated Evaporator/Concentratorssecurely hold from 8 to 24 sample vials, and can accommodate tubes from 12- to 16-mm dia. Units also available for handling EPA vials. LED display gives temperature readout with an accuracy of ±0.25%. Units include a heating block to ensure faster evaporation. Manifold gas heating option ensures temperature of sample is maintained by heating the gas before introduction into sample. Units include integrated controlled heater, sample holder, and 1.5"L 15-gauge needles.

Specifications

Total positions                   24

Bath temperature                  Ambient to 212°F (100°C)

Temp control accuracy             0.25%

Display                           4-digit LED

Power (Hz)                        50/60

Temp range                        ambient to 212°F (100°C)

Dimensions                        7.5"W x 5.5"D x 5"H

Condenser type                    Heated Evaporators

Gas flow                          40 L/min

Power (VAC)                       120

Manufacturer number               099AEV2412S

Brand                             Cole-Parmer
