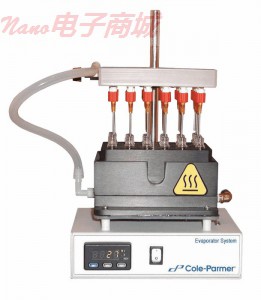

Cole-Parmer 099AEV9612S 加热蒸发器/集中器

Cole-Parmer 099AEV9612S 加热蒸发器/集中器

个人针头提供给样本更快，更连续的蒸发

在紧凑的装置里就能进行经济可靠的蒸发

模型能够适应不同尺寸的试管和微孔板

快速蒸发一般邮寄溶剂-适用于医药，环境，高效液氧色谱和一般的研究应用。针头阀能够控制进入到均衡器里的气体量，也能平衡均匀的提供到每个针头的气体量和蒸发。针头阀能够控制多种样品的快速集中。每一个针头都有可调节高度的不锈钢制成的，其能1适应一系列的样品尺寸。加热蒸发器/集中器可以盛放8到24个样本，并且能够适用12到16mm直径的试管。该设备也能处理EPA小瓶。二极管显示细上温度的示数能够准确到±0.25%。该设备还包括一个加热盖帽以确保更快的蒸发。气体加热选择确保了在气体进入到样本之前，样本的温度能够维持不变。该设备包括整合控制加热器，样本盛放仪器和1.5英尺长，15两层的针头。

规格

全部位置                                 96

浴槽温度                                 周围温度达212°F (100°C)

温度控制准确率                           0.25%

显示                                     二极管显示器

频率                                     50/60

温度范围                                 大约212°F (100°C)

大小                                     7.5"W x 5.5"D x 5"H

浓缩器类型                               加热蒸发器

气体流速                                 40 L/min

电压                                     120

生产商编号                               099AEV9612S

品牌                                     Cole-Parmer

Indivdual needles provide equal flow of gas for faster, consistent evaporation of samples

Economical and reliable evaporation in a compact instrument

Models available to accommodate different-sized tubes and microwell plates

Rapidly evaporate common organic solvents—ideal for pharmaceutical, environmental, HPLC, GCMS, and general research applications. Needle valve controls the flow of gas into the equalizer manifold, which provides equal gas flow and uniform evaporation to each well. Needle valves ensure control for fast concentration of multiple samples. Each needle is made from 15-gauge stainless steel with easy height adjustment to accommodate a variety of sample sizes.Heated Evaporator/Concentratorssecurely hold from 8 to 24 sample vials, and can accommodate tubes from 12- to 16-mm dia. Units also available for handling EPA vials. LED display gives temperature readout with an accuracy of ±0.25%. Units include a heating block to ensure faster evaporation. Manifold gas heating option ensures temperature of sample is maintained by heating the gas before introduction into sample. Units include integrated controlled heater, sample holder, and 1.5"L 15-gauge needles.

Specifications

Total positions                          96

Bath temperature                         Ambient to 212°F (100°C)

Temp control accuracy                    0.25%

Display                                  4-digit LED

Power (Hz)                               50/60

Temp range                               ambient to 212°F (100°C)

Dimensions                               7.5"W x 5.5"D x 5"H

Condenser type                           Heated Evaporators

Gas flow                                 40 L/min

Power (VAC)                              120

Manufacturer number                      099AEV9612S

Brand                                    Cole-Parmer、
