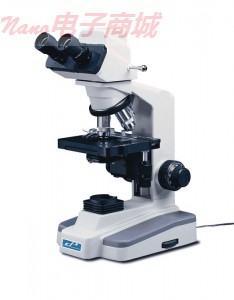

Cole-Parmer DC5-163 专业双目显微镜

Cole-Parmer DC5-163 专业双目显微镜

数码摄影和优异显微镜技术获益。使用显微镜本身或将它插到你的电脑，你就即可捕捉，标签，测量，存储，或电子邮件的数字图像。你不需要购买一个独立的显微镜，摄像机，电缆和软件，这个包括了所有。所有型号包括易于使用的Windows ?软件。您还可以录制音频评论，以及您的图像。这种显微镜具有10倍（18毫米）宽视场目镜瞳距调整和橡胶目镜杯。一个目镜标配的指针。一个三位置滑动杆指示灯100％双目目镜，相机或100％，或70％至相机目镜和30％。显微镜有1.25 NA阿贝聚光台有一个内置的低调，球轴承安装机械试样架齿条和齿轮调焦，虹膜光圈，和旋出蓝色，绿色和黄色过滤器的过滤器。低位置同轴控制; 70毫米x 50毫米（X）（Y）移动0.1毫米的刻度。显微镜有同轴粗微调焦。粗有张力调整，刻度精致。注：此模式也可与超高对比度物镜（ACS），半计划物镜（SP），或计划物镜（P）致电我们的应用专家更多信息。

Reap the benefits of digital photography and excellent microscopy technology. Use the microscope by itself or plug it into your computer and you’re ready to capture, label, measure, store, or e-mail digital images of your specimens. You don’t need to buy a separate microscope, camera, cables and software—this package comes complete and ready to use. All models include easy-to-use Windows? software. You can also record audio comments along with your images. You can’t go wrong with this system!This microscope features wide field 10x (18-mm) eyepieces with interpupillary adjustment and rubber eyepiece cups. A pointer comes standard in one eyepiece. A three-position sliding rod directs light 100% to binocular eyepieces, or 100% to camera, or 70% to camera and 30% to eyepieces. Microscope has a 1.25 N.A. Abbe condenser with rack-and-pinion focusing, iris diaphragm, and swing-out filter with blue, green, and yellow filters.

The large stage features a built-in low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls; 70 mm (x) x 50 mm (y) movement with 0.1 mm graduations. Microscope has coaxial coarse and fine focus. Coarse has tension adjustment, fine is graduated.

Note: This model is also available with a super high contrast objective (ACS), a semi-plan objective (SP), or a plan objective (P)—call our Application Specialists for more information.
