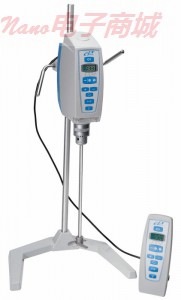

Cole-Parmer 100-230 VAC 低扭矩模块化数字可逆混合系统

Cole-Parmer 100-230 VAC 低扭矩模块化数字倒车混合系统

独特的双键盘操作，完整的混合器调整高达6英尺的距离！

倒数计时器

可逆和时间周期

样品灯

遥控器

搅拌机头和遥控器上的IP54等级

多位支架站台，悬挂，或用磁铁贴在金属表面

锁定功能，防止无意的更改设置

使用全功能，挂件遥控器增加的速度，启动/停止，设置定时器，电机的方向扭转，甚至打开样品灯。该控制器，以及搅拌机头，符合IP54防护等级，所以这将是能够承受偶尔飞溅和泄漏。万能遥控器不需要远程操控的情况下，可以脱离。

远程控制器的设计特点，包括舒适的人体工程学的手持式设计，多位架/钩，多线管理。多位置台/钩允许一个简单的改变的方向支架的台面停留垂直或水平方向上。支架托架还兼作实验室晶格上的控制器，钳，或任何其他的直杆的钩挂至3/4“（19毫米）直径和最小长度是3”。两个按钮磁铁通风柜和橱柜的金属表面，如在后面的控制器贴上。内置线管理沿背部设有一个轨道，让遥控线的顶部，左下角，右下角，或中心控制器底部的渠道。控制锁定功能，可通过遥控器或混频器的集成控制，通过简单的开始/暂停按钮，持续8秒头。

这锁定了所有的控制，以防止意外的改变速度或定时器。电源按钮操作，而在锁定模式下进行紧急停机，集成的混合光可以打开和关闭，以查看被搅拌的样品

包括：仅搅拌机：搅拌机头，6英尺线远程挂件控制器，可调夹头（接受杆直径3/8英寸），夹头键，调音台系统安装支撑杆，外接电源，接地电源线和插头组件。

混合机系统增加：螺旋桨/轴，支撑支架，支架钳。

产品规格
产品类型	混频器
描述	搅拌机系统
最小转速（rpm）	80
最大转速（rpm）	4000
马力（HP）	0.1
遥控	是的，可拆卸
轴径	0.375最大
最大扭矩（在盎司）	74
电源（VAC）	100
功率（赫兹）	50/60
符合CE认证	是
显示	4位LED
品牌	科尔 - 帕默

Specifications
Product Type	Mixer
Description	Mixer system
Min speed (rpm)	80
Max speed (rpm)	4000
Motor (hp)	0.1
Remote control	Yes, Removable
Shaft dia	0.375 in maximum
Max torque (in-oz)	74
Power (VAC)	100
Power (Hz)	50/60
CE Compliance	Yes
Display	4 Digit LED
Brand	Cole-Parmer

Unique, dual-keypad operation allows for complete mixer adjustment up to six feet away!

Countdown timer

Reversing and timed cycles

Sample light

Remote controller

IP54 rating on both mixer head and remote controller

Multiposition bracket for standing, hanging, or affixing to metal surfaces with magnets

Lockout feature to prevent inadvertent setting changes

Use the full-function, pendant remote controller to increase the speed, start/stop, set the timer, reverse the direction of the motor, and even turn on the sample light. This controller, as well as the mixer head, meets IP54 ratings so it will be able to withstand occasional splashes and spills. The versatile remote controller can be detached from the mixer head in situations where a remote is not needed.

Controller design features include comfortable ergonomic handheld design, multiposition stand/hook, and multiple-cord management. The multiposition stand/hook allows for vertical or horizontal orientation resting on a countertop with a simple change in the direction of the stand. The stand bracket also doubles as a hook to hang the controller on lab lattice, clamp, or any other straight bar up to 3?4" in (19-mm) diameter and minimum length of 3". Two button magnets on the back of the controller affix to metal surfaces like fume hoods and cabinets. Built-in cord management features a track along the back to allow the remote cord to be channeled out of the top, left bottom, right bottom, or center bottom of the controller.

Control lockout feature is available either via the remote control or from the integrated controls on the mixer head by simply holding the start/pause button for 8 seconds. This locks out all controls to prevent inadvertent speed or timer changes. The power button operates while in lockout mode for an emergency stop, and the integrated mixing light can be turned on and off to view the samples being stirred.

What's included:

Mixer only: mixer head, remote pendant controller with 6-ft cord, adjustable chuck (accepts rod up to 3/8 inch diameter), chuck key, mounting support rod, external power supply, and grounded power cord and plug assembly.

Mixer system adds: propeller/shaft, support stand, and support clamp.
