高频率42 kHz高频率声波清洗提供了更大的功率,增加了可靠性
扫描频率通过创建重叠声波,统一清洁
现在这些清洗器变换低频交流电流为42千赫的高频声波通过压电换能器。换能器产生的正弦波,这反过来又导致气蚀的形成和在溶液中的微小真空。彻底擦洗与溶液接触的每一个表面。清洗器还有“扫”水箱清洗,创建重叠超声波和消除不一致的清洗由于激烈的超声波活动领域,提供了统一的频率。

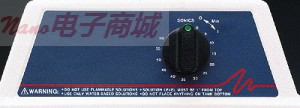

超级密封防漏外壳设有双O型环和凹进的通风。304不锈钢(SS)水箱经久耐用,耐冲击聚丙烯外壳包围。密封膜控制面板不飞溅和泄漏。加热器和机械定时器提供增强的清洁工 2-1/2- 热清洗1-1/2-,5-1/2-加仑的清洁剂
清洁能力的理想有一个快速断开漏的1/2-和3/4-加仑的清洁有一个倾倒口。不要使用易燃的溶剂来进行超声波清洗。必须使用这些清洁剂清洁液。使用插入托盘或烧杯定位这些超声波清洗机盖和烧杯。
包括:聚丙烯,整合手柄,防滑脚,和一个7 1/2-ft(2.1米)电源线。(115伏直流型包括插头,230伏直流型不包括插头)单独订购清洁溶液。
产品规格 | |
产品类型 | 超声波清洗机 |
容量(加仑) | 1.5 |
罐体外形尺寸(“L) | 11.5 |
罐体外形尺寸(“W) | 6 |
罐体外形尺寸(“H) | 6 |
频率输出(赫兹) | 42000 |
功率(赫兹) | 50/60 |
功率(安培) | 0.6 |
电源(VAC) | 230 |
品牌 | 科尔 - 帕默 |
生产编号 | CPN-956-336(B3510E-MT |
High-frequency 42 kHz high-frequency sound waves provide greater cleaning power and increased reliability
Sweep frequency provides uniform cleaning by creating overlapping sound waves
These cleaners transform low-frequency AC current into 42 kHz high-frequency sound waves via piezoelectric transducer. The transducer creates sinusoidal waves, which in turn cause cavitation—the formation and violent collapse of minute vacuum bubbles in the solution. These implosions thoroughly scrub every surface with which the solution makes contact, yet are not harsh on delicate items. Cleaners also feature "sweep" frequency that provides uniform cleaning thoughout the tank by creating overlapping ultrasonic waves and eliminating inconsistent cleaning due to areas of intense ultrasonic activity.
The leakproof housing features super-sealing double O-rings and recessed ventilation. The 304 stainless steel (SS) tank is surrounded by a durable, impact-resistant polypropylene housing. Sealed membrane control panel is impervious to splashes and spills.
Cleaners with heater and mechanical timer provide enhanced cleaning capability—ideal for heat cleaning
The 1-1/2-, 2-1/2-, and 5-1/2- gallon cleaners have a quick-disconnect drain.
The 1/2- and 3/4-gallon cleaners have a pour spout.
Never use ultrasonic cleaners with flammable solvents. A cleaning solution must be used with these cleaners. Use an insert tray or beaker positioning cover and beaker with these ultrasonic cleaners. Ultrasonic acticity is greatest starting about an inch from the bottom of the tank.
Never use ultrasonic cleaners with flammable solvents. A cleaning solution must be used with these cleaners. Use an insert tray or beaker positioning cover and beaker with these ultrasonic cleaners. Ultrasonic acticity is greatest starting about an inch from the bottom of the tank.
What's Included:
a polypropylene lind, integral handles, nonskid feet, and a 7 1/2-ft (2.1 m) power cord (115 VAC models include plug; 230 VAC models do not include plug). Order cleaning solutions separately.
) |
Specifications |
|
Product Type |
Ultrasonic Cleaner |
Capacity (gal.) |
1.5 |
Tank dimensions (" L) |
11.5 |
Tank dimensions (" W) |
6 |
Tank dimensions (" H) |
6 |
Frequency output (Hz) |
42000 |
Power (Hz) |
50/60 |
Power (Amps) |
0.6 |
Power (VAC) |
230 |
Brand |
Cole-Parmer |
Manufacturer number |
CPN-956-336 (B3510E-MT) |
