Seepex MDC 003-12 - Spaggiari 卫生与斯帕加里驱动螺杆泵，0 - 31加仑

Seepex 卫生与斯帕加里驱动螺杆泵，0 - 31加仑

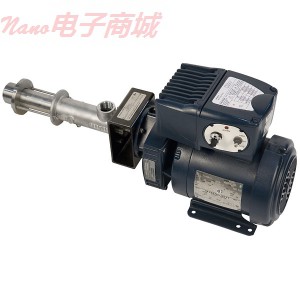

Sanitary progressing cavity pump with a Spaggiari drive, 0 - 31 GPH

优良的耐化学腐蚀性，无脉流，低剪切

温和低剪切流体输送能抽小颗粒而不损坏产品

泵可处理各种聚合物和化学品，是制药和水处理应用的理想选择

卫生批准3A卫生应用型，而且可以清理到位

A

泵头可以安装在一个NEMA 56C底架电动机。泵压头，也可以直接连接或AC或DC电机，汽油发动机（最小2马力），或空气马达驱动皮带。

B

马达乙泵电机部分是紧密耦合的交流电机有一个整体式的VFD控制器。VFD控制器设有“手自动关闭”开关，提供从30到600转的速度。

C

泵230/460 VAC的输入电源配备了一个0.5马力的电动机。这种配置具有的机械变速驱动器，调整从0到1000转。

选项分为工业和卫生类别。其他弹性体也可供,附加信息请联系应用程序专家

Excellent chemical resistance, pulseless flow, and low shear

Gentle low-shear fluid transfer capable of pumping small particles without damaging product

Pumps can handle a variety of polymers and chemicals—ideal for pharmaceutical and water treatment applications

Sanitary models approved for 3A sanitary applications and can be cleaned in place

A

Pump heads can be mounted on a NEMA 56C frame motor. Pump heads can also be directly connnected or belt dirven by an AC or DC motor, gasoline engine (min. 2 hp), or air motor.

B

Pumps are close-coupled to an AC motor with an integral VFD controller. The VFD controller features a “hands-off-auto” switch, providing speeds from 30 to 600 rpm.

C

Pumps feature a ?-hp motor with 230/460 VAC input power. This configuration has a mechanical variable-speed drive that adjusts from 0 to 1000 rpm.

Options are broken up into an industrial and a sanitary categories. Other elastomers are avialble, please contact an Applications Specialts for additional information.
