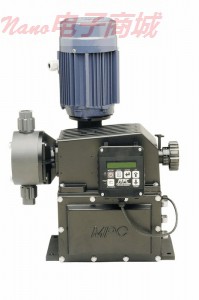

Pulsafeede DC5C-1-AP-M1 泵，计量，108gph，115/230V，SS，W / MPC控制器

Pulsafeede 泵，计量，108gph，115/230V，SS，W / MPC控制器

Pump, Metering, 108gph, 115/230V, SS, w/ Mpc Controller

重型达150 psi最大流量达到140 GPH

机械隔膜设计，消除了流体的泄漏和污染

行程锁保持行程设定精度±2％

寿命润滑密封的铸铁外壳可减少磨损和等级为NEMA 4，IP55

手动控制和自动控制，同时利用1/2马力，TEFC电机一个安静和凉爽的操作。这个轻量级的计量泵允许使用MPC控制器的能力1000:1转跌。MPC自动控制器控制水泵的转速和流量通过数码管显示。MPC使用数字（4至20 mA）输入和输出，以监视和控制过程中的元素。

PVC型适合氢氧化钠，硫酸低浓度，氢氧化物酸在低浓度。选择不锈钢移动乙酸，和锂氯化物。

Heavy duty—get up to 150 psi with maximum flow rates up to 140 GPH

Mechanical diaphragm design eliminates leakage and contamination of fluid

Stroke lock maintains ±2% accuracy of the stroke setting

Lubricated for life—sealed cast iron housing reduces wear and is rated NEMA 4, IP55

Manual control and automatic control both utilize 1/2 hp, TEFC motor which provides for a quiet and cool operation. This lightweight metering pump allows a 1000:1 turn down capability by using the MPC controller. The MPC automatic controller controls the pump speed and flow through a digital display. The MPC uses digital (4 to 20 mA) inputs and outputs to monitor and control elements of the process.

The PVC model is ideal for pumping Sodium Hydroxide, Sulfuric acids in low concentrations, and Hyrdrochloric acids in low concentrations. Choose the stainless steel version for moving Acetic acids, and Lithium Cholrides.
