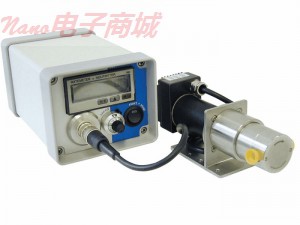

Microannular L24697 齿轮泵，5µL-255ml/每分钟，1160 PSI数字控制器

Microannular齿轮泵，5微升-255毫升/每分钟，1160 PSI数字控制器

Microannular Gear Pump, 5microliter to 255ml/min, 1160 PSI with digital controller

分配量0.25μL

从0.003到288μL/ min的流速

精度±1％以内

压力可达580磅

节省宝贵的液体和需要高精度的流体运动，这些泵成为一种必然。内部的技术，类似的齿轮泵，脉动保持到最低限度确保平滑，稳定的流量需要在分析仪器，医疗诊断，燃料电池和微反应技术，生物技术，和其他关键应用程序进程的应用程序，如微型环形齿轮泵旋转泵的构造与外部带齿的内转子，以及与一个环形齿的外转子，其中承担彼此略有偏心。其偏移轴周围的转子在旋转过程中，泵室同时增加感应侧，并减少泵的输出侧上。均相流率的肾形的入口和出口之间产生。占地面积小，易于集成到一个布局以方便研究。低压模型提供石墨电刷直流电动机，并配有编码器。提供高性能车型配备了电子换向无刷直流电动机执行器和集成控制单元。可以控制的RS-232接口，使用Windows ®移动管理器软件（包含）或通过模拟输入信号，电源电压12至24 VDC.A齿轮泵橇是一个多功能的工具，应用于各种行业，包括化工，食品，半导体和制药生产。通常情况下，一台齿轮泵撬来自一个共同的双工和三缸两个品种。许多用户选择这个系统的时候，他们正在处理厚，但光滑的物质。当你购买齿轮泵防滑系统，通常你会收到一个标准的齿轮泵，标定柱，安全阀，稀释后静态混合器。没有组件通常是必需的。您可以添加附件，如坦克，过滤器和搅拌器。校准列系精确流量通过系统溢流阀防止系统高压。静静态混合允许将水或其他液体混在一起，无论抽吸任何化学品，齿轮泵防滑适合聚合物和流体具有不同的密度和粘度参数。

Dispense volumes as small as 0.25 µL

Flow rates from 0.003 to 288 µL/min

Accuracies within ±1%

Pressure capable to 580 psi

With the trend to conserve valuable liquids and the need for high-precision movement of fluid, these pumps are becoming a necessity. Internal technology, similar to that of gear pumps, keeps pulsations to a minimum ensuring smooth, consistent flow necessary in applications such as analytical instruments, medical diagnostics, fuel cell and micro-reaction technology, biotechnology, and other critical application processes.

Micro-annular gear pumps are rotary pumps that are constructed with an externally toothed internal rotor as well as with an annular tooth external rotor, which bear slightly eccentric to each other. During rotation of the rotors around their offset axis, the pumping chambers simultaneously increase on the induction side and decrease on the delivery side of the pump. A homogeneous flow rate is generated between the kidney-shaped inlet and outlet. The small footprint allows for easy integration into a layout to facilitate the research.

Low-Pressure Models are supplied with DC motors with graphite brushes and are fitted with encoders.

High-Performance Models are provided with actuator equipped with an electronic commutated, brushless DC motor and integrated control unit. Control can be an RS-232 interface using Windows® Motion Manager software (included) or via an analog input signal, supply voltage 12 to 24 VDC.A gear pump skid is a versatile tool used in various industries including in the chemical, food, semiconductor and pharmaceutical production. Typically a gear pump skid comes in two varieties—a common duplex and a triplex. Many users opt for this system when they are dealing with thick, but smooth, substances. When you buy gear pump skid system you will usually receive a standard gear pump, calibration columns, relief valve, and post dilution with static mixer. No assembly is usually required. You can add on accessories such as tanks, filters and agitators. The calibration columns allow precise flow through your system and the relief valve prevents high pressure from building up in your system. The static mix allows water or other fluids to be mixed in with whatever chemical you are pumping which makes a gear pump skid ideal for working with polymers and fluids that have differing density and viscosity parameters.
