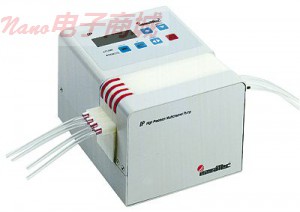

Ismatec™CN-78023-42 标准速度，行星齿轮传动，24通道数字泵

Ismatec™标准速度，行星齿轮传动，24通道数字泵

Standard-Speed, Planetary Gear-Driven, Digital Pump; 24 channels

独特的行星传动提供平稳，精确的流量和管寿命更长

这些多通道泵具有行星传动驱动八个不锈钢辊行星齿轮齐声转动平稳，精确的液体流量。泵运行时，四位LED显示屏显示马达转速％的最大转速，（“A”型）和流速或rpm“B”型。使用MAX键瞬间增加吸或冲洗速度，而不会干扰你的编程设置。

油管尺寸和配方组合，以满足您的应用程序。Click'n'go?墨盒设有自动闭塞简化使用和可重复性的结果。将墨盒安装在低脉动;高反压在相反的方向。单独订购两油管。

变速泵

通过6键键盘输入泵速精确抽水，适合连续抽水

模拟输入允许您远程控制速度; TTL触点闭合提供了启动/停止，旋转方向，并自动启动控制。通过模拟输出监控速度。

远程控制功能：速度控制0?5,0至10 VDC，0至20，4至20 mA，启动/停止，扭转方向，通过触点闭合（DB15Female）和自动启动。分配器可以连接DB15female口：

变速可编程

分配泵适合连续抽或以下五种模式。

-流量：0.0007至35.43毫升/分钟

-时间：0.1秒?999.9小时

-批次：设置分配容积延迟

-滴灌：程序返回步骤，以防止滴水

-毫升和μL

泵具有模拟输入和输出控制，以及通过计算机RS-232接口远程控制。

远程控制性能：

RS-232控制所有操作功能（DB9 male），0至5 VDC，0至10 VDC，0至20 mA，4至20 mA，用于启动/停止和自动启动通过触点闭合（DB15 male）;脚踏开关（三针DIN端口）。

通过模拟输出监控速度，数字泵通过6键键盘输入泵的速度，精确抽水，适合连续抽水。模拟输入允许您远程控制速度; TTL触点闭合开始/停止，旋转方向，自动启动控制。通过模拟输出监控速度。

ISMATEC-REG TM ISMATEC SA

Unique planetary drive provides smooth, precise flow and longer tubing life

These multichannel pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow. The four-digit LED display shows rpm or percent of maximum rpm when pump is running (“A” model) and flow rate or rpm on “B” model. Use the MAX button to instantly increase speed for priming or flushing without disturbing your programmed settings.

Combine tubing sizes and formulations to suit your application. Click’n’go? cartridges feature automatic occlusion for simplified use and reproducible results. Install cartridges in one direction for low pulsation; in opposite direction for higher counter pressure. Order two-stop tubing separately.

A: Variable-Speed Pumps

Enter pump speeds via the 6-button keypad for precise pumping—ideal for continuous pumping.

Analog inputs allow you to remotely control speed; TTL contact closure provides start/stop, rotation direction, and autostart control. Monitor speed via analog output.

Remote control capabilities: 0 to 5, 0 to 10 VDC, 0 to 20, 4 to 20 mA for speed control, start/stop, reverse direction, and autostart via contact closure (DB15 female). Dispenser may be attached for DB15 female port.

B: Variable-Speed Programmable

Dispensing Pumps Ideal for continuous pumping or for dispensing in any of five modes:

— Flow rate: 0.0007 to 35.43 mL/min

— By time: 0.1 seconds to 999.9 hours

— Batches: set delay between dispensed volumes

— Drip-free: program back-steps to prevent drips

— Volume in mL and μL

Pumps feature analog input and output controls, as well as an RS-232 interface for control by a computer.

Remote control capabilities: RS-232 to control all operating functions (DB9 male); 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA for start/stop and autostart via contact closure (DB15 male); footswitch(three-pin DIN port). Monitor speed via analog output.Digital Pumps let you enter pump speeds via the 6-button keypad for precise pumping—ideal for continuous pumping. Analog inputs allow you to remotely control speed; TTL contact closure provides stat/stop, rotation direction, and autostart control. Monitor speed via analog output.

ISMATEC—Reg TM Ismatec SA
