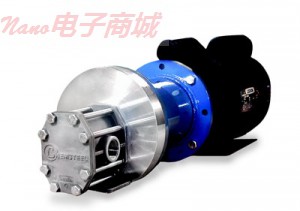

Chemsteel® SM4171FPM M1T47 熔模铸造316不锈钢无轴封磁力驱动，10 GPM，115/230 VAC

Chemsteel®熔模铸造316不锈钢无轴封磁力驱动，10 GPM，115/230 VAC

Chemsteel® investment cast 316 SS sealless magnetic drive, 10 GPM, 115/230 VAC

自吸和双向功能提供了优异的配量，计量，聚合物和腐蚀性化学品转移

耐磨螺旋齿轮降低噪音水平10分贝

重型三件式设计结合轴承，耐磨板，更容易现场辅助泵

Ryton® 或熔铸316 SS对腐蚀性化学品的应用提供了极好的相容性

聚苯硫醚齿轮泵提供了性价比高选择精铸316不锈钢无泄漏磁力驱动泵，用于输送各种流体。在连续工作的应用提供卓越的性能。无泄漏设计是设计来处理有害，有毒或高腐蚀性化学品，所有泵都密切耦合标准56C面孔电机。TEFC电机类型是完全封闭的，风扇冷却。115/230 VAC型号是单相。可用于变速控制器使用的三相电机。订购请致电我们的应用专家。此外，如果您粘度需求更高，请致电我们的应用专家。服务套件包括：安装驱动和从动齿轮轴，键，轴承，O型圈，密封组件。

Self-priming and bidirectional capabilities offer excellent dosing, metering, and transfer of polymers and corrosive chemicals

Wear-resistant helical gears offer reduced noise levels of 10 dB

Heavy-duty three-piece design combines bearings and wear plates to easily service pump in the field

Ryton® or investment cast 316 SS provide excellent compatibility for applications involving corrosive chemicals

Ryton Gear Pumps provide a cost-effective option for pumping a variety of fluids.

Investment Cast 316 SS Sealless Magnetic Drive Pumps provide superior performance in continuous-duty applications. Sealless design is engineered to handle hazardous, toxic, or highly corrosive chemicals. 3

All pumps are close-coupled to standard 56C-face motors. Motor type is TEFC, totally enclosed, fan-cooled. The 115/230 VAC models are single phase. Three phase motors for variable-speed use with controllers are available. Call our Application Specialists to order. Also, contact our Application Specialists if your maximum viscosity requirements are higher.

Service kits include: drive and idler gears mounted to the shafts, keys, bearings, O-rings, and seal assemblies.
