Troemner 9497T 25Lb 质量25LB 10-1/4“直径W校验砝码

Troemner 质量25LB 10-1/4“直径W校验砝码

Avoirdupois with traceable certificate, Mass 25LB 10-1/4"dia w/NIST

Use in a variety of applications such as pressure, torque, and tensile strength testing

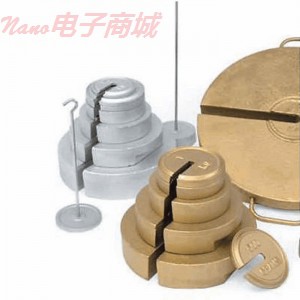

Use several slotted weights together to build up from a minimum weight to a maximum test load

A durable coat of paint protects each weight from rusting and chipping– gold for metric and silver for avoirdupois

Slotted weights and castings meet ANSI/ASTM E617 hardness and surface roughness requirements and are free of cracks, pits and sharp edges. Each weight above 2 kg/5 lb have adjusting cavities, weights under 2 kg / 5 lb are adjusted by removing material from the underside of the weight. Weights 50 kg / 100 lb and have two handles on opposite ends to aid in lifting.

Weight Hangers are calibrated to a mass value and may be used as part of the overall slotted weight under test. Order Weight Hangers separately — see Related Products category at right.

Specifications

Product Type Calibration Mass

Class Class 6

Mass (lbs) 25

Thickness 1-3/8"

Diameter 10-1/4"

Slot 1"

Brand Troemner

使用中的各种应用，如压力，扭矩，和抗张强度测试

使用一些开槽重量在一起，以便形成从极小的重量，最大试验负荷

耐用的油漆涂层保护每个重量生锈和抗崩角公制和银金矿常衡

开槽的重量和铸件符合ANSI / ASTM E617硬度和表面粗糙度要求，无裂纹，凹坑和锐边。每个权重上面的2千克/5磅的已调整腔，下2千克/5磅的重量调整，通过去除材料从底面的重量。重量50公斤/ 100磅，有两个把手的相对端上，以帮助起重重量衣架校准的质量值，并作为整体开槽重量下测试的一部分，也可以使用。承重量衣架分开-请参阅相关的产品类别，在右边。

产品规格

产品类型 校准砝码

类 第6类

量（磅） 25

厚度 1-3/8“

直径 10-1/4“

槽 1“

牌 Troemner
