Cole-Parmer® 1963778-010TV12 pH电极，线，双路口，100欧姆RTD /迷你音频插头，10英尺的电缆，镀锡端

Cole-Parmer® pH电极，线，双路口，100欧姆RTD /迷你音频插头，10英尺的电缆，镀锡端

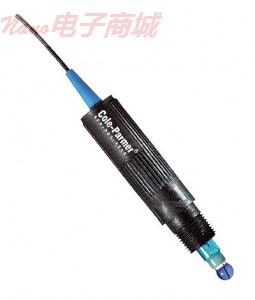

Cole-Parmer® pH electrode, in-line, double-junction, 100 Ohm RTD w/mini-audio plug, 10-ft cable, Tinned ends

集成，一体式电极以及外壳，安装方便

可选单结或双结电极

BNC或精简和镀锡两端的选项

内嵌电极操作温度32到212°F（0到100°C），并用1/2'' NPT（M）螺纹抗化学物质的PVDF壳体。外壳测量4''×15/16英寸直径。电极比外壳长1''。最大压力100磅。测量pH值从0到13

注：100ΩRTD的ATC元素铂，符合DIN曲线43760。ATC接头微型音频插头

连接器1kΩ的电阻式温度检测器和3kΩ的的BALCO ATC元素是平接线片。

100kΩ的热敏电阻ATC元素的连接器是一个标准的1/4“电话插头。

Integral, one-piece electrode and housing for installation convenience

Choose from single-junction or double-junccion designs

Options of BNC or stripped and tinned ends

In-line electrodes operate from 32 to 212°F (0 to 100°C) and have a chemical-resistant PVDF housing with a 1/2'' NPT(M) thread. Housing measures 4'' x 15/16'' diameter. Electrode extends 1'' beyond housing. Maximum pressure 100 psi. Measure pH from 0 to 13.

Note: 100 Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.

Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.

Connector for 100 kΩ thermistor ATC elements is a standard 1/4" phone plug.
