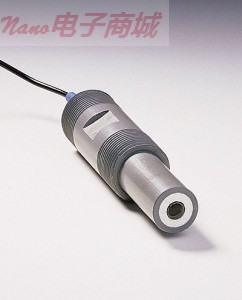

Cole-Parmer® 1922757-010BGV12 自清洗pH电极，CPVC外壳，100Ω铂电阻温度传感器，10英尺的电缆，BNC

Cole-Parmer® 自清洗pH电极，CPVC外壳，100Ω铂电阻温度传感器，10英尺的电缆，BNC

Cole-Parmer® self-cleaning pH electrode, CPVC housing, 100 Ω Pt RTD, 10-ft cable, BNC

扁平电极表面防止产生固体

最困难的pH值，ORP应用中使用这些独特的双结电极。扁面上不会收集固体悬浮物的流体流过电极提供了清洁行动，延长电极的使用寿命，提高了性能。环形结降低参比电池污染。。

选择CPVC外壳（最高温度80℃），耐化学腐蚀的Ryton?外壳（最高温度100°C）。这两种类型都有氟橡胶? O型环保持到位的玻璃泡和一个10英尺的屏蔽电缆，可用于压力高达100磅。内置ATC元素和BNC连接器匹配各种仪表和控制器。电极安装在三通管件-3/4“NPT(M)线程和1-3/4“插入深度。

注： 100Ω铂电阻温度传感器的ATC元素符合DIN曲线43760。

Flat electrode surface prevents buildup of solids

Use these unique double-junction electrodes in your most difficult pH and ORP applications. Flat surface does not collect suspended solids—fluid flow across the electrode provides a cleaning action that extends electrode life and improves performance. Annular junction reduces reference cell fouling.

Choose either a CPVC housing (max temp 80°C) or chemical resistant Ryton? housing (max temp 100°C). Both types have Viton? O-ring to hold glass bulb in place and a 10-ft shielded cable and can be used at pressure up to 100 psi. Built-in ATC elements and BNC connectors match a variety of meters and controllers. Install electrodes in tee fittings—3/4" NPT(M) thread and 1-3/4" insertion depth.

Note: 100 Ω Pt RTD ATC elements conform to DIN curve 43760.
