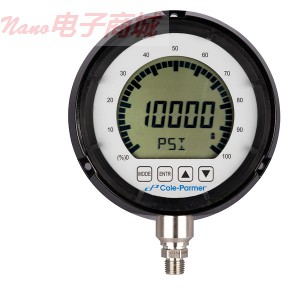

Cole-Parmer EW-68086-32数据记录和棒图显示数字压力表

Cole-Parmer 数据记录和棒图显示数字压力表

270°条形图读数为0至100％量程

记录多达60条记录的时间间隔或事件触发

具有去皮，高峰，保持和最小值/最大值功能

可选自动断开时间2，4，8，16，和32分钟

仪表具有用户可选择的度量单位，内置锁定功能，防止未经授权的访问。压力表前面四个按钮控制访问菜单。可用于多种应用，管路压力，压力容器，力测量。大5 1/2“屏幕，通过条形图或远距离的数字读数读取压力。

选择电池供电单位进行远程监控电源无法够到的压力，或4至20 mA输出电压供电单位。4至20 mA输出的单位，允许您发送压力测量读数到记录仪，数据记录仪，或为开关或泵控制应用的PLC。

270° bar graph reads 0 to 100% of scale

Log up to 60 records—time interval or event triggered

Features tare, peak, hold, and min/max functions

Selectable auto-off of 2, 4, 8, 16, and 32 minutes

Gauges feature user-selectable units of measure and a built-in lockout feature that prevents unauthorized access. Menu is easily accessed via the four-button controls on face of gauge. Use in many applications such as line pressure, vessel pressure, and force measurement. Large, 5 1/2" display allows you to read pressure via bar graph or numeric readout at far distances.

Choose the battery-operated units for remote monitoring of pressure where power is not accessible, or the voltage-powered units with 4 to 20 mA output. Units with 4 to 20 mA output allow you to send pressure measurement readings to recorders, data loggers, or PLCs for switching or pump control applications.
