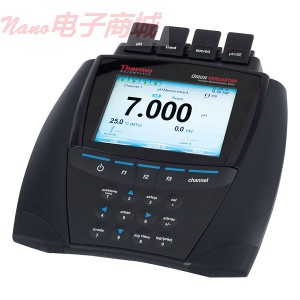

Thermo Scientific Orion Versa Star 及pH / LOGR模块
Thermo Scientific Orion Versa Star withpH/LogR Modules
模块配置仪表,你需要它 - 现在,以后
自定义的四个测量通道,五种不同的参数模块
大彩色图形LCD直观的多语言界面
非易失性内存最多可储存2000个数据点,时间和日期戳
易于操作的USB和RS232端口和数据传输软件
5点校准自动识别美国/ NIST和DIN缓冲器
一个点重新校准编辑校准误差
最先进的电极诊断
无温度
VERSA STAR先进的仪表提供一至四个测量通道同时操作的通用性。五个参数模块的渠道,包括pH值,电导率,pH / ISE的DO / RDO,pH值与LOGR。可自定义你需要的仪表,模块与模块封装,或一套完整的测量仪,模块,电极和液体。
这种多功能仪表有一个大的彩色图形液晶显示器。信息显示屏显示温度,连接,时间,日期,样品编号,用户ID和校准数据的读数。纯语言屏幕提示,软键,多种语言界面,支持英语,西班牙语,法语,意大利语,德语和中文。非易失性内存最多可容纳2000个数据,设置时间和日期戳。易于操作的USB和RS232端口和数据传输软件进行数据管理。
增加1 pH值/ LOGR的测量模块。探头单独订购。
包含: VERSA STAR 仪表
包括:电极臂重新设计的支架和一个通用电源适配器。
Modularity allows you to configue the meter how you need it--for now and for later
Customize the four measurement channels with five different parameter modules
Large color graphic LCD with intuitive multilanguage interface
Non-volatle memory holds up to 2000 data points with time and date stamp
Easy-to-operate USB and RS232 ports and data transfer software included
Up to 5 point calibration with automatic recognition for USA/NIST and DIN buffers
Editing calibration errors with a one point recalibration
The most advanced electrode diagnostics
No temperature
The VERSA STAR advanced meter provides the versatility to operate from one to four measurement channels at the same time. The five parameter modules available for the channels including; pH, pH/ISE, Conductivity, DO/RDO, and pH with LogR. Customize the meter you need with the options of meter only and modules, a meter with module package, or a full kit with meter, modules, electrode and solutions.
This versatile meter has a large color graphic LCD display. The informative display shows readings with temperature, connections, time, date, sample ID, user ID and calibration data. Plain language screen prompts, soft keys, and a multilanguage interface supports English, Spanish, French, Italian, German, and Chinese.
Non-volatle memory holds up to 2000 data sets with time and date stamp. Easy-to-operate USB and RS232 ports and data transfer software take stress out of data management.
Adds one pH/LogR measuring module. Order probes separately.
What's Included:
VERSA STAR meters include: an electrode arm with redesigned holder, and a universal power adapter.
产品规格 |
|
产品类型 |
多参数计 |
仪表风格 |
台式 |
尺寸 |
9.5×24×28.2厘米 |
范围(pH值) |
2.000至20.000 |
范围(温度) |
5至 |
范围(mV) |
±2000.0 mV |
分辨率(pH值) |
0.1,0.01,0.001 |
分辨率(温度) |
0.1 |
分辨率(MV) |
0.1 |
准确度(PH) |
±0.002 |
准确度(温度) |
±0.1 |
精度(mV的) |
±0.2 |
温度补偿 |
自动 |
显示 |
液晶显示 |
接口 |
USB或RS232 |
防水 |
是 |
缓冲液识别 |
美国NIST,DIN |
功率 |
AC适配器;可选AA电池 |
数据记录(点) |
2000 |
符合CE认证 |
是 |
品牌 |
Thermo Scientific |
型号 |
VERSA STAR W pH LogR Module |
Specifications |
|
Product Type |
Multiparameter Meters |
Meter style |
Benchtop |
Dimensions |
9.5 x 24 x |
Range (pH) |
2.000 to 20.000 |
Range (Temperature) |
5 to |
Range (mV) |
±2000.0 mV |
Resolution (pH) |
0.1, 0.01, 0.001 |
Resolution (Temperature) |
0.1 |
Resolution (mV) |
0.1 |
Accuracy (pH) |
±0.002 |
Accuracy (Temperature) |
±0.1 |
Accuracy (mV) |
±0.2 |
Temperature compensation |
Automatic |
Display |
LCD |
Interface |
USB or RS232 |
Waterproof |
Yes |
Buffer recognition |
|
Power |
AC adapter; optional AA batteries |
Datalogging (points) |
2000 |
CE Compliance |
Yes |
Brand |
Thermo Scientific |
Model |
VERSA STAR W pH LogR Module |
