Thermo Scientific Orion Dual Star pH / ISE / mV计
Thermo Scientific Orion Dual Star™ pH/ISE/mV meter only
创新EZ启动™不需要手动开始测量
双输入同时测量和显示pH值,ISE,温度
操作简单提示指导您完成计操作和设置
猎户座双星仪表提供双BNC和温度的同时pH和ISE读数输入。离子浓度附加选项浓度单位,低层次的测量,内置星搅拌器控制,并能查看,打印校准曲线斜率数据,以及修改校准点可选自动空白。米轻松引导您通过共同的直接测量,但也被编程为一个已知的单人和双人的加法和减法方法。自动进样器的功能,让您可以充分利用高样品通量技术来节省时间和提高测量质量的双星利用EZ启动的设置™,无需进行手动,智能稳定性的™和SmartAveraging™,以确保准确的结果。仪表提供了全套符合GLP的相关特征,包括1000点数据记录时间/日期戳,电极核查,并全面校准数据。生成和存储高达每通道10个密码保护的方法。轻松下载从USB端口或双向RS-232。仪表包括:快速入门指南,电极支架,不锈钢ATC探头,通用AC供电电源。仪表电极补充说:再填充,玻璃体猎户座罗斯超®电极仪表套件附加: 475毫升瓶,4,7,10缓冲液;和猎户座ROSS ®电极存储液
Innovative EZ Startup™ ensures no manual is needed to begin taking measurements
Dual inputs allow you to simultaneously measure and display pH, ISE, and temperature
Simple to operate—prompts walk you through meter operation and setup

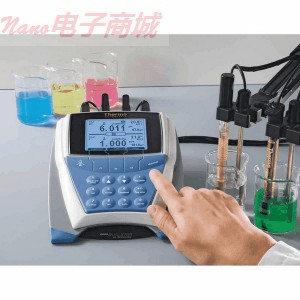

The Orion Dual Star meter provides dual BNC and temperature inputs for simultaneous pH and ISE readings. Ion determination is facilitated by additional options for concentration units, optional auto-blank for low-level measurements, built-in Star-stirrer control, and the ability to view, print your calibration graph with slope data, and modify calibration points. The meter easily guides you through common direct measurements, but also is programmed for a range of single and double known addition and subtraction methods. Autosampler capabilities allow you to take advantage of high sample throughput technology to save time and improve measurement quality.
The Dual Star utilizes EZ Startup™ for setup without the manual, and Smart Stability™ and SmartAveraging™ to ensure accurate results. The meter offers a full complement of GLP-related features including 1000 point datalogging with time/date stamp, electrode verification, and full calibration data. Generate and store up to 10 password-protected methods per channel. Easily download from the USB port or bidirectional RS-232.
Meter includes: Quick-Start guide, electrode stand, stainless steel ATC probe, and universal AC power supply.
Meter with electrode adds: a refillable, glass-body Orion ROSS Ultra® electrode.
Meter kit adds: 475-mL bottles of 4, 7, and 10 buffer; and Orion ROSS® electrode storage solution.
产品规格 |
|
产品类型 |
多参数计 |
仪表风格 |
台式 |
外形尺寸(W) |
9 |
尺寸(“H) |
2 |
尺寸(“D) |
8 |
范围(pH值) |
-2.00 20.000 |
范围(mV的) |
±1999.9 |
范围(ISE) |
0.0001至19,999(PPM,毫克/毫升,摩尔/ L,%,无单位) |
范围(温度°C) |
-5.0至105.0 |
分辨率(pH值) |
0.1/0.01/0.001 |
分辨率(温度) |
|
分辨率(MV) |
0.1 |
分辨率(ISE) |
3位有效数字 |
准确度(PH) |
±0.002 |
准确度(温度) |
± |
精度(mV) |
±0.2 mV或0.05%,以较高者为准 |
精度(ISE) |
0.2%mV或0.05%,以较高者为准 |
温度补偿 |
自动或手动 |
显示 |
液晶显示 |
接口 |
USB或RS232 |
校准 |
6 |
防水 |
是 |
缓冲液识别 |
美国NIST,DIN,定制 |
功率 |
通用电源适配器(附带) |
数据记录(点) |
1,000 |
符合CE认证 |
是 |
品牌 |
Thermo Scientific |
型号 |
双星™ |
Specifications |
|
Product Type |
Multiparameter Meters |
Meter style |
Benchtop |
Dimensions (" W) |
9 |
Dimensions (" H) |
2 |
Dimensions (" D) |
8 |
Range (pH) |
-2.00 to 20.000 |
Range (mV) |
±1999.9 |
Range (ISE) |
0.0001 to 19,999 (ppm, mg/mL, mole/L, %, unit-less) |
Range (Temperature °C) |
-5.0 to 105.0 |
Resolution (pH) |
0.1/0.01/0.001 |
Resolution (Temperature) |
|
Resolution (mV) |
0.1 |
Resolution (ISE) |
up to 3 significant digits |
Accuracy (pH) |
±0.002 |
Accuracy (Temperature) |
± |
Accuracy (mV) |
±0.2 mV or 0.05% whichever is greater |
Accuracy (ISE) |
0.2% mV or 0.05% whichever is greater |
Temperature compensation |
Automatic or manual |
Display |
LCD |
Interface |
USB or RS232 |
Calibration |
6 |
Waterproof |
Yes |
Buffer recognition |
|
Power |
Universal power adapter (included) |
Datalogging (points) |
1,000 |
CE Compliance |
Yes |
Brand |
Thermo Scientific |
Model |
Dual Star™ |
