Thermo Scientific 550 x 350 mm 金属探测器

Thermo Scientific 550 x 350 mm 金属探测器

Ensure food safety by detecting all types of metal contaminants

Proprietary multicoil design provides excellent sensitivity to all metals

Fully tested to meet IP69k/NEMA/ATEX requirements

Application flexibility with dual frequency and gain operation

Remove product effects with traditional phasing or unique Intellitrack XR (IXR)

Quickly set up products with simple autolearn function

Multilingual help text

Multi-level password protection to ensure correct operation in production

Fe, non-Fe, and 316 stainless steel test cards included

Rated for IP69k washdown and dust environments

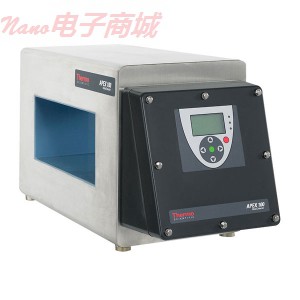

The APEX 100 metal detector provides basic, cost-effective protection from the most common metal contaminants found in food production today. This metal detector is instrumental in your HACCP policy compliance and is designed to perform for years with minimal maintenance.

To deliver greater accuracy in detecting contaminants in wet and salty products, the APEX 100 features the innovative Intellitrack XR (IXR) technology. This technology learns and cancels the sinusoidal X (reactive) and R (resistive) product signals, and only detects the metal contaminants. To maintain high accuracy over time, the IXR tracks product changes and adjusts the product signals to eliminate the risk of contaminants going undetected.

Installation and setup is quick and easy, and no special training is required. The detectors come with everything you need, including electrical fittings as well as clear wiring and mechanical mounting instructions. An easy-to-use icon-driven interface features a step-by-step quick-reference guide, multilingual help text, and autocalibration.

Optimize performance by matching the metal detector exactly to your conveyor width and product height with the numerous aperture size configurations available. Easily customize your metal detector with additional accessories such as MODBUS communications modules, field compression flanges, remote control mounting kit, alarm/fault warning lights and horn, and photo eyes for product inspection trigger.

Note: To ensure proper aperture clearance, add at least 1.9 in (50 mm), to the width and height of the product. The control panel is always mounted in the center of the front of the metal detector case unless remote mounting is ordered.
What's Included:
metal detector head, mounting hardware, watertight electrical fittings, test cards, and documentation on CD (users' guides and installation instructions, quick reference guide, and PC software simulator)
