Thermo Scientific 500 x 350 mm金属探测器

Thermo Scientific 500 x 350 mm金属探测器

Ensure food safety by detecting all types of metal contaminants

Proprietary multicoil design provides excellent sensitivity to all metals

Fully tested to meet IP69k/NEMA/ATEX requirements

Application flexibility with dual frequency and gain operation

Remove product effects with traditional phasing or unique Intellitrack XR (IXR)

Quickly set up products with simple autolearn function

Multilingual help text

Multi-level password protection to ensure correct operation in production

Fe, non-Fe, and 316 stainless steel test cards included

Rated for IP69k washdown and dust environments

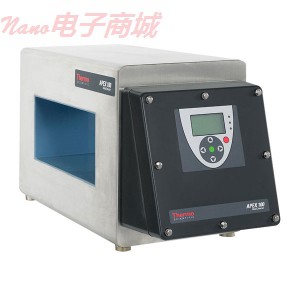

The APEX 100 metal detector provides basic, cost-effective protection from the most common metal contaminants found in food production today. This metal detector is instrumental in your HACCP policy compliance and is designed to perform for years with minimal maintenance.

To deliver greater accuracy in detecting contaminants in wet and salty products, the APEX 100 features the innovative Intellitrack XR (IXR) technology. This technology learns and cancels the sinusoidal X (reactive) and R (resistive) product signals, and only detects the metal contaminants. To maintain high accuracy over time, the IXR tracks product changes and adjusts the product signals to eliminate the risk of contaminants going undetected.

Installation and setup is quick and easy, and no special training is required. The detectors come with everything you need, including electrical fittings as well as clear wiring and mechanical mounting instructions. An easy-to-use icon-driven interface features a step-by-step quick-reference guide, multilingual help text, and autocalibration.

Optimize performance by matching the metal detector exactly to your conveyor width and product height with the numerous aperture size configurations available. Easily customize your metal detector with additional accessories such as MODBUS communications modules, field compression flanges, remote control mounting kit, alarm/fault warning lights and horn, and photo eyes for product inspection trigger.

Note: To ensure proper aperture clearance, add at least 1.9 in (50 mm), to the width and height of the product. The control panel is always mounted in the center of the front of the metal detector case unless remote mounting is ordered.
What's Included:
metal detector head, mounting hardware, watertight electrical fittings, test cards, and documentation on CD (users' guides and installation instructions, quick reference guide, and PC software simulator)



Specifications
Product Type		Metal Detectors
Operating conditions		14 to 104°F (-10 to 40°C), 20 to 80% RH noncondensing
Power		85 to 260 VAC single phase plus earth ground 47 to 65 Hz, 100 watts max
Outputs		Six relays: 250 VAC, 2 A max; 50 VDC, 1 A max
Output allocation		(Selectable via menu) Reject 1, reject 2, fault, alarm, warning, QA lamp
Inputs		Six: active 12 VDC + 12 V auxiliary supply for input sensors
Input allocation		(Selectable via menu) Speed sensor, keylock, product select 1, product select 2, infeed PEC, reject confirmation 1 (bin full), reject confirmation 2, external suppression
Construction		304 stainless steel straightlined case, ABS plastic control panel
Protection ratings		IP69k, NEMA 4, ATEX zone 22, hazardous location Class II, Division 2, Groups F & G
Languages		English, Spanish, French, German, Italian, Dutch, Chinese, Russian, Czech, Polish
Aperture height		350 mm
Aperture width		500 mm
Product speed		1.7 to 3300 ft/min (0.5 to 1000 m/min)
CE Compliance		Yes
Manufacturer number		APEX 100, 500 x 350 mm
Brand		Thermo Scientific

通过检测所有类型的金属污染物，确保食品安全

专有multicoil设计提供优异的灵敏度对所有金属

全面测试，以满足IP69k/NEMA/ATEX要求

双频率和增益操作的应用灵活性

删除产品效果与传统的相位或独特的Intellitrack XR（IXR）

迅速成立了产品具有简单的自学习功能

多语言帮助文本

多级密码保护，以确保正确操作生产

包括铁，非铁，和316不锈钢测试卡

额定IP69K冲洗和粉尘的环境中的

APEX 100金属探测器提供基本的，具有成本效益的保护，从今天发现在食品生产中最常见的金属污染物。器乐在HACCP的政策符合这种金属探测器是用最少的维护是设计用来执行多年。 为了提供更精确的检测污染物在潮湿及盐份高的产品，APEX 100功能创新Intellitrack XR（IXR）技术。这种技术的学习和取消正弦X（反应性）和R（电阻）乘积信号，并仅检测的金属污染物。随着时间的推移，为了保持精度高IXR跟踪产品的变化，调整产品信号消除污染物的风险去未被发现。安装和安装快速而容易，不需要特殊培训。该探测器配有你需要的一切，包括电器配件以及清晰的布线和机械安装说明。一个易于使用的图标驱动的界面设有一个一步一步的快速参考指南，多语种的说明文字，并自动校准传送带宽度和产品的高度完全匹配的金属探测器，与众多的光圈大小配置的优化性能。可用。额外的配件，如MODBUS通讯模块，场压缩法兰远程控制安装套件，报警/故障警告灯和喇叭，产品检测触发的照片眼睛轻松地定制你的金属探测器。注：为了确保正确的光圈间隙，至少应添加1.9英寸（50毫米），该产品的宽度和高度。除非下令远程安装控制面板总是安装金属探测器的情况下正面中心包含的内容：金属探测器头，安装硬件，水密电器配件，测试卡和CD（用户指南和安装文件说明，快速参考指南，以及PC软件模拟器）



产品规格
产品类型		金属探测器
工作条件		14至104°F（-10至40°C），20〜80％RH，无冷凝
功率		85到260 VAC单相带地线47至65赫兹，100瓦最大
输出		六个继电器：250 VAC，2 A最大50 VDC，1 A最大
输出分配		（通过菜单选择）拒绝1，拒绝2，故障，报警，预警，QA灯
输入		六：活跃的12 VDC + 12 V辅助电源为输入传感器
输入分配		（通过菜单选择）速度传感器，锁，产品选择，产品选择1 2，进给PEC，拒绝确认1（箱满），拒绝确认2，外部抑制
施工		304不锈钢straightlined的情况下，ABS塑料控制面板
防护等级		IP69K，NEMA 4，ATEX 22区，危险场所II级，2，F和G组
语言		英语，西班牙语，法语，德语，意大利语，荷兰语，汉语，俄语，捷克语，波兰语
光圈高度		350毫米
光圈宽度		500毫米
产品速度		1.7至3300英尺/分钟（0.5〜1000米/分）
符合CE认证		是
制造商数量		APEX 100，500 x 350毫米
牌		Thermo Scientific的
