美国Cannon 9726-A20 豪华恒温水浴，120 VAC

美国Cannon豪华恒温水浴，120 VAC

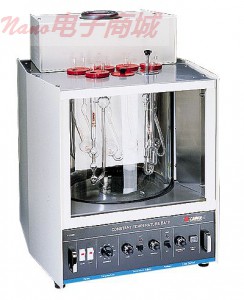

Cannon deluxe constant temperature bath, 120 VAC

Take up to seven viscosity measurements at one time

Stainless steel cooling coil lets you operae below or slightly above ambient temperature

Temperature selection switch lets you quickly select from 10 popular temperature settings

Motor-driven stirrer ensures uniform temperature throughout bath

Ideal for kinematic viscosity measurements per ASTM D 445

Control the viscosity of your samples with these Cannon^®constant-temperature baths. These unique baths hold up to seven glass capillary viscometers and two thermometers (holders are required—order separately). See-through glass chamber lets you continuously view samples.
All units feature a control circuit that provides proportional temperature control and an accuracy of ±0.01°C from 20 to 100°C (±0.03°C above 100°C for the high-temperature deluxe models). Select any temperature within the range or select from ten preset temperatures. Fine tuning dial lets you adjust this value to within 0.01°C of your target temperature. Multiple safety features include overtemperature, low-level, and sensor disconnection cutoffs.
Chamber is made of clear Pyrex^® and includes a reflective stainless steel baffle in the center; the deluxe model also includes two fluorescent lamps on both sides. Housing is constructed of corrosion-resistant epoxy-coated heavy aluminum with insulated stainless steel cover; includes stainless steel cooling coil.
Fill bath with deionized water or oxidation-inhibiting bath oil for high-temperature applications. Order bath oil and other accessories separately, and thermometers from our Temperature section.



Specifications
Product Type		Water Bath
Bath type		Viscosity Water Bath
Capacity (Liters)		17
Min temperature (º C)		20
Max temperature (º C)		150
Temp control		Proportional
Temp sensor		Stainless steel-encased thermistor
High-temperature cutoff		Adjustable within range
Temp setting		Analog
Low-level cutoff		Yes
Wetted materials		Stainless steel, glass, and PTFE®
Accuracy		±0.01ºC to 100ºC ±0.03ºC above 100ºC
Power (VAC)		120

一次需要多达七个粘度测量

不锈钢冷却盘管，可以让你的环境温度低于或略高于operae

温度选择开关，可以让您快速选择常用的温度设置从10

马达驱动搅拌器，确保温度均匀，整个浴缸

按照ASTM D 445非常适于运动粘度测量

控制样品的粘度与这些大炮^®恒温浴。这些独特的浴场容纳多达7个玻璃毛细管粘度计和温度计（持有人是需要单独订购）。见室透过玻璃可以让您连续观看样品。
所有单位设有一个控制电路，可提供比例温度控制和20°C至100°C（±0.03°C以上高温100℃，精度为±0.01豪华版车型）。选择任何范围内的温度，或选择10个预设温度。微调拨号让您调整这个值在0.01°C的目标温度。多重安全功能包括过热，低水平，传感器断线截止
商会是由清晰的高硼硅^®，包括反光的不锈钢挡板的中心，豪华模型还包括两侧的两个荧光灯。耐腐蚀环氧涂层沉重的铝隔热不锈钢盖房屋建造包括不锈钢冷却线圈。
填写高温应用去离子水或氧化抑制油浴洗澡。订购沐浴油和其他配件分开，温度计温度部分。



产品规格
产品类型		水浴
巴斯类型		粘度水浴
容量（升）		17
最低温度（ºC）		20
最高温度（°C）		150
温度控制		按比例
温度传感器		不锈钢包裹的热敏电阻
高温截止		范围内可调
温度设定		类似物
低层次的截止		是
接液材料		不锈钢，玻璃，聚四氟乙烯®
准确性		±0.01°C至100°Ç  ±0.03ºC 100ºC以上
电源（VAC）		120
