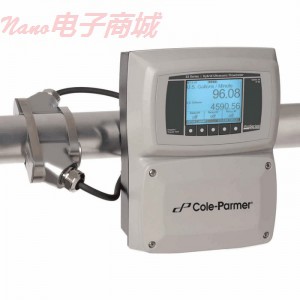

Cole-Parmer S2C1A1040SFJGMALE 混合超声多普勒/过境时间流量计

Cole-Parmer S2C1A1040SFJGMALE 混合超声多普勒/过境时间流量计

无创技术适用于清洁或脏的液体

RS-232，RS-485，以太网和USB连接到实时用户的PC软件

不要移动零件防止磨损或需要维护

NEMA 4X（IP66）外壳耐磨损适合户外使用，包括手提箱。

这些超声波流量计可以测量流体的流量，使用多普勒或传输时间法，几乎与任何可产生声波的流体都适合使用。流量计使用最先进生产的DSP（数字信号处理），互相关信号分析，以及专有优度测量算法，以确保测量准确可靠。现场轻松调整出厂设置以适应应用的变化，如管道尺寸，管道材料，或流体类型。

钳式传感器防护等级为NEMA 4X（IP66），包括10英尺的电线。每个流量计配有PVC管。的大小cooresponding传感器。附加传感器管道尺寸和电缆长度可供如下。

包括：手提箱，软件和可移动32 MB SD卡。

Noninvasive technology works with both clean or dirty fluids

RS-232, RS-485, Ethernet, and USB connections to real-time user PC software

No moving parts to wear or requiring maintenance

NEMA 4X (IP66) enclosure is weather-resistant for outdoor use, and includes carrying case.

These ultrasonic flowmeters can measure fluid flow using either the Doppler or transit time methods, making the meter suitable for use with nearly any fluid that can conduct sound waves. The meters use the latest advancements in DSP (digital signal processing), cross-correlation signal analysis, and a proprietary goodness-of-measurement algorithm to ensure accurate and reliable measurements. Easily adjust factory settings in the field to accommodate any chages in applications, such as pipe size, pipe material, or type of fluid.

The clamp-on transducers are rated NEMA 4X (IP66) and include 10 ft. of cable. Each flowmeter comes with the cooresponding size transducer for PVC pipe. Additional transducer pipe sizes and cable lenghts are available below. These additional transduce

What's Included:

Carrying case, software, and removeable 32 MB SD card.
