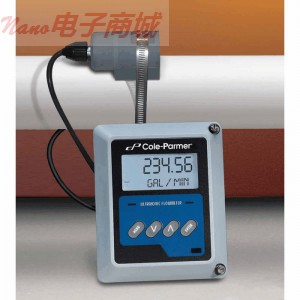

Cole-Parmer DDFXD3-A11A-NN 超声波流量计

Cole-Parmer DDFXD3-A11A-NN 超声波流量计

感应线性化允许适应各种各样的应用

精度为±2％满量程标定量程

非侵入式，夹装式传感器适合管道从¼”及以上

钳式传感器省去行管道法兰，管件，过滤器或过滤器

使用这些多普勒流量计测量流量管或更大管中的液体。每个流量计需要一组传感器（32615-66或-68）和监测器（32615-60，-62，-64）。

该传感器发送流量数据通过RG59同轴电缆线连接到监控器，监控器的软件会自动调整过滤参数和设置，以确保可靠的读数，确保在很宽的范围的液体和反射条件。轻松配置使用显示器前面板上的键盘。两行背光液晶显示器率和累计流量值，用户可选择测量单位。型号32615-62和-64有4至20 mA输入和输出数据记录或记录。4至20 mA的输入，必须提供为4至20 mA输出。监控器外壳防护等级为NEMA 4X (IP-66)。 NEMA 6P (IP68)额定交易

In-field linearization allows adaptation to a wide variety of applications

Accuracy is ±2% full-scale over calibrated span

Nonintrusive, clamp-on transducers fit pipes from ¼” and above

Clamp-on sensor eliminates the need for in-line flanges, pipe fittings, strainers, or filters

Use these doppler flowmeters measure the flow of liquids in pipes from ¼” and larger. Each flowmeter requires a transducer set(32615-66 or -68) and a monitor(32615-60, -62, or -64).

The transducers send flow data via RG59 coax cable to the monitor, and the monitor’s software automatically adjusts filtering parameters and gain settings to ensure reliable readings are ensured over a wide range of liquid and reflector conditions. Easily configure the monitor using the front panel keypad. A two-line backlit LCD displays rate and accumulated flow values in user selected measuring units. Models 32615-62 and -64 have a 4 to 20 mA input and output for datalogging or recording. A 4 to 20 mA input must be supplied for a 4 to 20 mA output. The monitor is housed in a NEMA 4X (IP-66) enclosure. The NEMA 6P (IP68) rated tra
