Cole-Parmer US61381 电磁阀电动阀门

Cole-Parmer US61381 电磁阀电动阀门

选择摇杆或橡皮脚两或三通不同的连接选项电磁阀，以更好地满足您的应用需求。摇杆或橡皮脚设计可双向直接作用，NC和三通直接作用，通用的功能与任何流动方向。该阀设计，具有隔离膜片，将液体从驱动器中分离。这种独特性能促进传热消除线圈不直接与膜片接触 ​​。摇杆和升降阀应用已成千上万遍及世界各地，并提供最高的生命周期，超过1亿的驱动周期。阀门内部体积很小,很容易清洗。

电磁阀用于化学和实验室应用。所有阀门非常适合歧管安装。立即订购歧管.选择阀组安装，分析应用适合的封板。歧管是PEEK材料制成的三通，两种常见的孔和单一的入口/出口连接到共同出口阀。

注：歧管阀必须单独订购。订购阀型号98622-06，-16，-30，-32，以便使用这些，阀门不控制歧管时，使用封板来阻挡端口

Choose the rocker or flipper two-, or three-way solenoid valve with different connection options to better suit your application needs. Rocker and flipper design are available in two–way direct-acting, NC; and three–way direct-acting, universal functions with any flow direction. The valve design features an isolation diaphragm that separates liquid from the actuator. This unique quality promotes heat transfer elimination as coil is not directly in contact with diaphragm. Both rocker and flipper valves have been proven in thousands of applications throughout the world and offer the highest life cycle available, over 100 million actuation cycles. Valves have minimal internal volume that is easily purged.

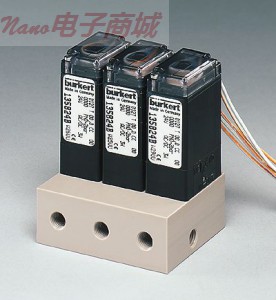

Use solenoid valves for chemical and laboratory applications. All valves are ideal for manifold mounting. Order manifolds at right.Select valve manifold mounts and blanking plates for your analytical applications. Manifolds are made of PEEK material and are three-way with two common holes and single inlet/outlet connected to common outlet in valve.

Note: Valves for manifolds must be ordered separately. Order valve models 98622-06, -16, -30, or -32 in order to use them with these manifolds.

Use blanking plate to block ports when valves are not being used in manifold.
