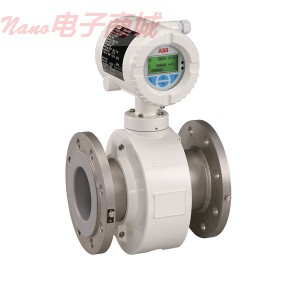

ABB ProcessMaster的™电磁流量计，FEP311.025.P.1.S.1.A1.B.0.A.1.A.0.A.1.B.3.B.1 .. JA.M5.P3

ABB ProcessMaster的™电磁流量计，1.06至52.8（4〜200）GPM（LPM） - 1“法兰连接

由FDA批准的制造材料，并按照EHEDG和3A认证

精度为±0.2%的测量值

直观的导航和配置

专为食品和饮料，制药和生物技术行业的设计

HygienicMaster?拥有增强的PFA内衬提高真空稳定性，并防止潜在的内胆变形。该传感器是完全CIP / SIP，所述HygienicMaster制造由FDA批准的材料和按照EHEDG和3A的认证，在潮湿或地区大的温度波动环境中使用传统的直读式频率计，当水分进入会导致漂移和测量不准确甚至产品失败，这些电磁流量计耐用和坚固的设计是非常适合于这些条件，因为它可以将一个GORE-TEX膜传感器和变送器，完全封装的电子减少水分侵入，提高整体产品的可靠性。

HygienicMaster还具有高精确度和先进的信号处理，以确保最低拥有成本。这些电磁流量计给用户提供了很大的灵活性，该电极嵌入到衬垫，从而确保表面光滑无缺口或裂缝。

采用先进的过滤技术，这些电磁流量计的信号从噪声中分离，产生更好的流动感测的可靠性提高精度。用户友好的界面允许所有工艺参数的快速和简单的数据录入。“易安装”引导通过菜单来尽可能快地设置参数，操作员一步一步来。软键的功能使得配置简单，只要用手机

标准HART协议使在线修改和监控参数，背光，图形显示可以很容易地通过270°旋转，而不需要任何工具。“透过玻璃”控制允许本地操作界面输入周期短，见效快的数据所有用户的具体参数。

先进的数据存储在传感器内部省去了匹配传感器和变送器，板载传感器内存删除与可插拔数据存储器模块相关的潜在问题。初始安装中，自配置顺序自动复制所有数据到发射机，省去了错误和导致起动速度增加。数据的传感器和变送器存储器冗余存储期间所有操作被持续更新，以确保测量的总的完整性。容易获得布线也最大限度地减少了时间，解决问题的领域。

这些电磁流量计监测其自身的可操作性和过程，按照NAMUR NE107，报警和警告进行分类的状态分类，如“需要维修”，“功能检查”，“失败”和“在规范之外”。

ProcessMaster™ Magnetic Flowmeter, 1.06 to 52.8 (4 to 200) GPM (LPM)- 1" Flange Connection

Advanced memory technology enables quick and reliable startup

Accuracy of ±0.4% of measured value

Intuitive navigation and configuration

Delivering accurate flow measurement in sectors as diverse as chemical, power, oil & gas, pulp & paper and metals and mining, these magnetic flowmeters are the ultimate flow solution for any process application. These magmeters have an intelligent design, state-of-the-art technology, advanced features, and delivers reliable and accurate measuring values. Self-cleaning and double-sealed electrodes enhance reliability and performance.

Using a higher excitation frequency combined with advanced filtering, the meter improves measurement accuracy by reducing fluid and electrode noise. This results in a better product
quality and higher reliability. Flowmeters are designed for high-temperature use, and in combination with a reinforced PFA liner, improves vacuum stability, prevents potential liner deformation, and makes these magmeters a perfect fit for all hot-fluid applications. Industry optimized linings of PFA ensure resistance to abrasion and chemicals. The flow sensor has an IP68 (NEMA 4X) rating.

Standard HART protocol enables online modification and monitoring of parameters. The backlit, graphical display can be easily rotated 270° without the need for any tools. “Through-the-glass” control allows local operator interface to input short, quick data for all user specific parameters. The user-friendly interface allows quick and simple data entry for all process parameters. With the softkey functionality, the configuration is as simple as using a mobile phone.

Advanced data storage inside the sensor eliminates the need to match sensor and transmitter in the
field. The on-board sensor memory eliminates the possible problems associated with pluggable data
memory modules. On initial installation, the self-configuration sequence automatically replicates all data into the transmitter eliminating the opportunity for errors and leading to increased speed of startup. Redundant storage of data in both the sensor and the transmitter memory is continually updated during all operations to ensure total integrity of the measurement. Easy access to wiring also minimizes the time for problem solving in the field.

These magmeters feature diagnostic capabilities providing the right information to keep the process up and running. In accordance with NAMUR NE107, alarms and warnings are classified with the status classifications such as "maintenance required", "function check", "failure", and "outside of specification".
