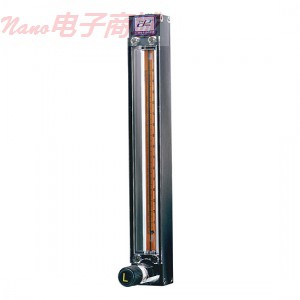

Cole-Parmer T51/1-044-40G 变截面流量计

Cole-Parmer T51/1-044-40G 变截面流量计

长达150毫米的测量使得这些流量计适合于高分辨率的应用

透明的聚碳酸酯前盾能够放大比例16％。

垂直切线定位线确保在阅读浮动阀位时的位置精度

每个流量计安装在用白色的丙烯酸后板（1/8"厚）的阳极化的铝框架上的厚壁玻璃流管。

为了确定最小流量值，取最大流量值的十分之一。

选择具有高精度的阀为优越的流量控制，非常适合于低流量的应用或用于在需要精确的流量控制的应用

16转高精密阀门设有nonrising阀杆，以更准确地达到想要的设置点

所有流量计配备在标准温度和压力（STP）的相关数据表的水和空气，咨询我们的应用专家了解更多信息，还可以提供校准数据。

Longer 150-mm scale makes these flowmeters perfect for applications demanding high resolution

Clear polycarbonate front shield magnifies scale 16%.

Hairline accuracy in reading float position is ensured by a vertical tangential locator line.

Each flowmeter consists of a heavy-walled glass flowtube mounted in an anodized aluminum frame with white acrylic backplate (1/8' thick).

To determine the minimum flow value, take one tenth of the maximum flow value.

Select a flowmeter with a high-precision valve for superior flow rate control—ideal for low-flow applications or for any application where you need precise flow control

The 16-turn high-precision valve features a nonrising stem to more accurately hit your desired set point

All flowmeters come with correlation data sheets for water and air at standard temperature and pressure (STP). We can also supply calibration data—call our Application Specialists for more information.
