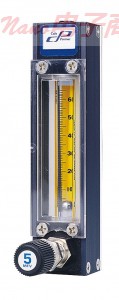

Cole-Parmer T51/6-N052-01S 浮子流量计

Cole-Parmer T51/6-N052-01S 浮子流量计

专为灵活性更为广泛的高纯度气体应用

小型设计非常适合小型板或狭小的工作空间

高调节最小流量小于最大流量的十分之一

高精密阀门选项监视和控制

金属配件被PTFE取代消除了潜在的污染源为高纯度的应用程序，玻璃管采用熔融陶瓷刻度精确，永久性测量指南。另外，垂直方向的切向定位器线路提供的读数与发际线精度。进一步提高可读性前盾放大比例16％，一个阳极氧化的铝框架保护厚壁玻璃流管，一个白色的丙烯酸背板保护，并在保护框体增强观看。

选择一个流量计流量控制阀门。标准阀适用于高分辨率测量，其中高分辨率计量不是必不可少的。高精度阀门设有细调16转“非暗杆”，以更精确地设置所需的流量。

所有的流量计设有相关数据表的水和大量的气体（如下所列）在标准温度和压力（STP）。

Designed for high-purity applications with flexibility for a broad array of gases

Compact design is ideal for small panels or cramped workspaces

High turndown—minimum flow rate is less than one-tenth of maximum flow

High-precision valve option allows monitoring and control

The substitution of metal fittings with PTFE eliminates a potential contamination source for high-purity applications. The glass tube utilizes a fused ceramic scale for a precise, permanent measuring guide. In addition, a vertical-tangential locator line provides readings with hairline accuracy. Further improving readability is a front shield that magnifies the scale 16%. An anodized aluminum frame protects the heavy-walled glass flowtube; a white acrylic backplate protects and enhances viewing in the protective frame.
Select a flowmeter with a valve for flow rate control. The standard valve is suitable where high resolution metering is not essential. The high precision valve features a fine-adjust 16-turn “non-rising stem” to more accurately set your desired flow rate.
All flowmeters come with correlation data sheets for water and numerous gases (listed below) at standard temperature and pressure (STP).
