Cole-Parmer GR60310AVB-CP 浮子流量计

Cole-Parmer GR60310AVB-CP 浮子流量计

易于安装和读数，可视视角为180°。

带有双浮子的新型号拥有更高的量程比，最大量程比达到20:1

这些广角流量计拥有比较宽广的读数视角。宽广的视角可以让你从正面和侧面观察流量计内流体的流动情况！旋转式的带有放大功能的面板可以用于更精确的读取读数。非常适于测量和分析

仪器或工业化学过程中的流速情况。常见的适用对象包括混纺，混合流体和气体 。

流量计分为单浮子和双浮子两种型号，配备有精确阀门控制流量。双浮子型号相较于单浮子型号更适用于高流速环境。仪表配有铝和316不锈钢（SS）框架，阀门和附件，所有机型采用了高硼

硅玻璃管和丁腈橡胶O型圈（不锈钢流量计配有氟橡胶O型圈）。所有流量计，配有水和空气的关联图表。我们的技术支持还可以提供氧，氮，氢，二氧化碳，氦的相关图表用于仪器的校准和

使用。

入口和出口都位于流量计的背面，使流体管道相对独立易于安装（流量管是单独销售的，将流量计垂直安装于控制面板或配有支架的三脚架底座上【需单独订购】）。

Easy to install and easy to read with 180° viewing

New models with dual-floats allow a higher turndown ratio—better than 20:1

These easy-view correlated flowmeters feature a wide viewing angle. The wide viewing angle lets you view flow tube and float from either front or side! Use rotating

shield to magnify tube for precise readings. Ideal for measuring and regulating flow rates for analytical instruments or industrial chemical processes. Common

applications include blending, mixing, and gas purging.

Flowmeters are available with single- or dual-floats and include a valve to control flow. Choose new dual-float models for higher flow rates than the single-float

models. Meters are available with aluminum or 316 stainless steel (SS) frames, valves, and fittings and all models feature a borosilicate glass tube and Buna-N O-rings

(Stainless steel flowmeters have Viton O-rings). All meters include correlation charts for water and air. Correlation charts for oxygen, nitrogen, hydrogen, carbon

dioxide, and helium are available from our Application Specialists upon request.

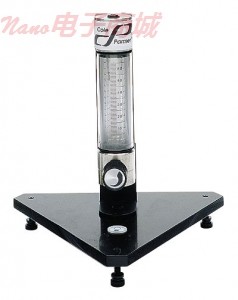

Inlet and outlet ports are located on the back of the flowmeter to keep tubing out of the way (tubing is sold separately Mount flowmeters vertically on a control panel

or bench with tripod base (order separately).
