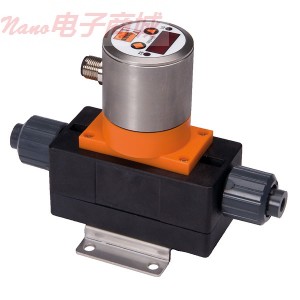

德国Kobold MIK-5NAUGN C34P磁感应流量计

德国Kobold MIK-5NAUGN C34P磁感应流量计

可以应用于各种导电性的液体，酸，焦散等流体的流量测量。

应用磁感应技术，没有移动部件

不锈钢焊条焊接的Ryton ? PPS机身。

PVC或PP配件

MIK Kobald系列磁感应流量计是测量导电液体的流量的理想选择，是应对可靠性和低电磁流量计压力损失需要的完美解决方案。

这些流量计测量流量使用磁感应原理。根据法拉第电磁感应定律，产生感应电流的导体，因为它的动作通过磁场。产生的电流与导体运动速度成正比。作为导体的导电性液体，通过仪表表体上安装的一组电磁线圈产生磁场。安装在表体中的电极处收集电流，其电流大小与流量成正比。

这些固态元件没有移动部件磨损问题，使他们非常可靠。对于粘性和肮脏的液体测量没有防治精度退化。内部采用的是的湿物料聚苯硫醚PPS 316L不锈钢焊条。选择从仪表输出4至20 mA电流或通过一个PNP开关显示。附件34900-90是一个4针，6英尺微型DC连接器电缆为4至20 mA输出模式。附件34900-92是一个6英尺5针，通过微型DC连接器电缆与显示和输出相连的机型。

Magneto-inductive Flowmeter With 3/8" PVC Fittings; 0.20 To 4 GPM; 4 To 20 mA Output

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton? PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.

These solid-state meters have no moving parts to wear out, making them very reliable. Viscous and dirty liquids are measured with no accuracy degredation. The wetted materials for the flow body are Ryton PPS with 316L stainless steel electrodes. Choose from meters with 4 to 20 mA output or with a display and 4 to 20 mA output with one PNP switch. Accessory 34900-90 is a 4-pin, 6-ft micro-DC connector cable for the 4 to 20 mA output models. Accessory 34900-92 is a 5-pin, 6-ft micro-DC connector cable for models with display and output.

Other configurations such as body material, fitting type, electronics, and totalizer are available. Contact a Davis Application Specialist for details.

产品规格
产品类型	电磁流量计
描述	电磁流量传感器
准确性	满量程的±2.0％
材料（配件）	PVC
最高工作温度（ºF）	176
最高工作温度（°C）	80
最大压力	145磅
符合CE认证	是
工作温度	32到176°F（0至80℃）
电气连接	6英尺5针，微型DC连接器
品牌	Kobold
型号	MIK 5NAUGN C34P
功率	24 VDC
制造商编号	MIK 5NAUGN C34P

Specifications
Product Type	Magnetic Flowmeters
Description	Magnetic Flow Sensor
Accuracy	±2.0% of full scale
Material (fitting)	PVC
Max operating temperature (º F)	176
Max operating temperature (º C)	80
Max pressure	145 psi
CE Compliance	Yes
Operating temperature	32 to 176°F (0 to 80°C)
Electrical connections	5-pin, 6-ft micro-DC connector
Brand	Kobold
Model	MIK-5NAUGN C34P
Power	24 VDC
Manufacturer number	MIK-5NAUGN C34P
