美国Gilmont GF-6541-1215流量计，150mm时，SS，W /阀门

美国Gilmont GF-6541-1215流量计，150mm时，SS，W /阀门

流量计，150毫米，SS

使用相关或直接读尺度，一个原件可以适合多种应用场合

直读刻度可以选择公制或英制单位，对于不同的应用场合可以自定义刻度

量程比大于25:1为杰出的监测和控制装置

配有理想的工业和实验室用防护罩的坚固机身

每个流量计包包括相关图表，加上两个直读秤。附加可互换的水或空气的直读式秤，而且也可以使用空气和水沿与关闭流管的读数来确定流率的相关图表。 随着第二代工厂校准管的使用，保

证了极好的精确度。这样就可以被表示为一百分比的读数没有的满量程！详见下面。此外，所有的传感器具有串行编号溯源校准，准确度和制造业数据。 仪器可在65毫米和150毫米的规模长

度让用户有一个选择，无论是结构紧凑，安装或规模更大，更精确和可读性。聚碳酸酯包裹了几乎150°的流量计外表，使其外表更美观。阀门型号配备了15转浅锥形塞设计使得能够实现80％

的比例范围内进行精确控制。 仪表是专为方便型流量交换或更换。随着一个单元屏蔽，最终站有一个大直径孔定心这种传感器，这种就流量计比其他流量计设计更快，更准确。

Flowmeter,150mm,ss

Use correlated or direct-reading scales—one meter for many applications

Direct reading scales in metric or English units—customize the meter for each application

Turn-down ratio of greater than 25:1 for outstanding monitoring and control

Rugged body with protective shield—ideal for industrial and laboratory use

Each flowmeter package includes correlation charts plus two direct-reading scales. Attach either of the interchangeable direct reading scales for water or air; you may

also use the air and water correlation charts along with readings off the flow tube to determine flow rates.

Excellent accuracy is achieved using second-generation correlation techniques along with factory calibration of the tube. This allows for accuracy to be expressed as a

percent of reading—not of full-scale! See details below. In addition, all flowtubes are serial numbered for traceability calibration, accuracy, and manufacturing

data.

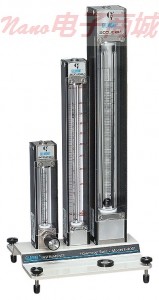

Meters are available in 65-mm and 150-mm scale lengths so users have a choice of either a compact installation or a larger, more precise and readable scale. The

polycarbonate shield wraps around 150° of the flowmeter for better viewing. Models with valves feature a 15-turn shallow taper plug design for precise control across

80-plus % of the scaled range.

Meters are designed for easy flowtube exchange or replacement. Along with a snap-off shield, the end stop has a large diameter bore for centering the flowtube more

quickly and accurately than other flowmeter designs.



产品规格
产品类型	浮子流量计
描述	可变区，直读流量计
准确性	读数的±2％或±1刻度（相关使用）;大于读数的±5％或±2毫米的刻度（直接阅读使用）
材料（o型圈）	氟橡胶®
材料（流管）	高硼硅玻璃
材料（浮动）	玻璃| 316 SS
最高工作温度（ºF）	250
最高工作温度（°C）	121
最大压力	200磅
过程连接	1/8“NPT（F）
重复性	读数的±1％或±0.5刻度，以较高者为准
打开比	比25:1
品牌	Gilmont
型号	GF-6541-1215
制造商	GF-6541-1215

Specifications
Product Type	Variable Area Flowmeter
Description	Variable Area, Direct Reading Flowmeter
Accuracy	The greater of ±2% of reading or ±1 scale division (correlated use); the greater of ±5% of reading or ±2 mm of scale (direct-reading use)
Material (o-ring)	Viton®
Material (Flow Tube)	Borosilicate Glass
Material (float)	Glass | 316 SS
Max operating temperature (º F)	250
Max operating temperature (º C)	121
Max pressure	200 psi
Process connection	1/8" NPT(F)
Repeatability	±1% of reading or ±0.5 scale division, whichever is greater
Turn-down ratio	better than 25:1
Brand	Gilmont
Model	GF-6541-1215
Manufacturer number	GF-6541-1215
