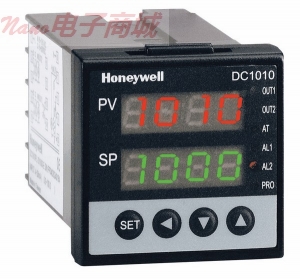

Honeywell DC1014CT-301-000-E 温度控制器

Honeywell DC1014CT-301-000-E 温度控制器

工业测量与控制

设定点编程

可在1/16- 1/8-或1/4-DIN的尺寸

这些微处理器为基础的控制器结合功能性和可靠性的高度。非常适于在各种应用，包括：烘干机，半导体封装/测试，塑料加工，包装机械，绘画和涂层，更用于调节温度。每个控制器有两个四位数的PV（过程值）和SP（设定值），控制器八分之一DIN和上面还设有一个LED光柱显示器显示。两个不同的配置级别提供方便的参数和一个四位数的安全代码，防止未经授权的更改。其特点包括PID或开/关控制，热/冷算法，电机位置控制，报警输出，热电偶或热电阻输入和A16段程序功能。设计任何线电压85VAC至265VAC 50/60HZ。有些型号配备了斜坡和浸泡编程或RS-485通讯，
高/低限控制器（型号89556-35）旨在提供一个安全切断和可选的报警。锁存继电器输出被激活时工艺参数超过或低于所需的值，提供故障安全防护必须手动重置进程能够继续下去之前截止。特点万能输入
这些产品或其他形式可供选择，特殊订货控制器的更多信息，请致电我们的应用部门。

Industrial measurement and control.

Setpoint programing

Available in 1/16- 1/8- or 1/4-Din sizes

These microprocessor based controllers combine a high degree of functionality and reliability. Ideal for regulating temperature in a variety of applications including: dryers, semiconductor packaging/testing, plastic processing, packaging machinery, painting and coating and more. Each controller has two four-digit displays that show the PV (process value) and SP (set value), with controllers 1/8th DIN and above also featuring a LED bargraph. Two different configuration levels provide easy access to parameters and a four-digit security code prevents unauthorized changes. Features include PID or On/Off control, heat/cool algorithms, motor position control, alarm outputs, thermocouple or RTD input and a16-segment program functionality. Designed to operate on any line voltage from 85Vac to 265Vac at 50/60Hz. Some models feature Ramp and Soak programming or RS-485 communication.
High/Low Limit Controller (model 89556-35) is designed to provide a safety shut-off and optional alarm. A latched relay output is activated when the process parameter either exceeds or falls below the desired value, providing a failsafe cut-off which has to be manually reset before the process can continue. Features universal input.
Call our Applications Department for more information on these products or to special order a controller with other options.
