TQC 曲线X2保温箱，标准型（小）

 配有：曲线-X2的USB数据采集器与理想完成软件和数据线，保温箱300℃，能量吸收器，硅胶垫片，探针鉴定试剂盒，带拉杆分离式便携包（只需添加所需的磁性或卡箍式探头做KIT完成 - 需另行购买）。

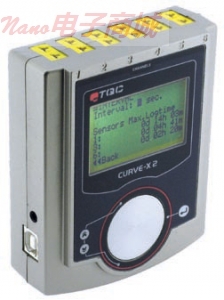

曲线-X2 USB 提供了易于使用，高品质的温度数据记录，用于油漆固化炉。 测量，分析水平和报告选项是完全可定制，为您提供您固化过程的质量量身定制的信息。

数据采集​​器配有一个大的显示屏，便于菜单式操作和测量结果的快速显示。 理想的完成数据分析软件可以让你分析记录的数据，并创建详细的报告。 这些先进的功能，具有多种显示和打印选项结合在一起，使曲线-X2 USB 最灵活的温度数据记录解决方案可用，非常适合于现场使用和实验室条件。

独特的功能：

背光的大显示屏，便于菜单式操作。

菜单五种语言：英语，西班牙语，德语，法语和意大利语。

启动和停止在预先设定的时间/日期/温度记录。

可编程（通过PC）长达15种涂料类型，固化指标精确计算。

如果在办公室油漆类型不可用，它可以在现场记录仪输入。

可变的测量时间间隔，日期，时间，C°/ F°和语言。

显示每个存储批次，包括固化指数的结果。

标准节AA电池保证1200小时连续运行。

扩展存储器存储10个批次的每25,000测量。

Comes complete with: Curve-X2 USB datalogger with Ideal Finish software and datacable, Insulation box 300°C, Energy absorber, Silicone gasket, Probe identification kit, Separate carrying case with trolley (Just add desired magnetic or clamp-type probes to make KIT complete - purchase separately.)

The CURVE-X2 USB offers easy-to-use, high quality temperature datalogging for paint curing ovens. Measurements, analysis levels and report options are fully customizable to provide you with tailor-made information on the quality of your curing processes.

The datalogger is fitted with a large illuminated display for easy menu-driven operation and quick display of measurement results. The Ideal Finish data analysis software allows you to analyze the logged data and create detailed reports. These advanced features, together with a wide range of display and printing options, make Curve-X2 USB the most flexible temperature datalogging solution available, ideally suited for both field use and laboratory conditions.

Unique Features:

Large illuminated display for easy menu-driven operation.

Menus in five languages: English, Spanish, German, French and Italian.

Start and stop logging at a pre-set time/date/temperature.

Programmable (via PC) for up to 15 paint-types, for accurate calculation of the Cure-index.

If a paint-type is not available in the library, it can be entered in the logger on site.

Variable measurement interval, date, time, C°/F° and language.

Displays the results of every stored batch, including Cure-index.

Standard AA-batteries guarantee 1200 hours of continuous operation.

Extended memory stores 10 batches of 25,000 measurements each.

技术资料
外形尺寸：	85×105×30毫米
渠道：	6探头（12探头单元“上添加”）
测量范围：	-58°F到2200°F / -50°C至+1200°C
精度：	±0.6°F / 0.3°C
分辨率：	0.2°F / 0.1°C
内存：	10批次，25300，或1批次253000读物
电池：	3个1.5V，AA型
接口：	USB



Technical Data
Dimensions:	85 x 105 x 30 mm
Channels:	6 probes (12 probes with “add on” unit)
Measuring Range:	-58°F to +2200°F / -50°C to +1200°C
Accuracy:	±0.6°F / 0.3°C
Resolution:	0.2°F / 0.1°C
Memory:	10 batches with 25300, or 1 batch with 253000 readings
Battery:	3 x 1.5V, Type AA
Interface:	USB
