型号SMP10数字熔点仪，240V TE-210110

SMP系列熔点测定仪 SMP Series Melting Point Apparatuses

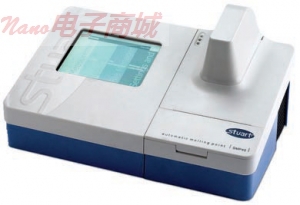

SMP40准确识别3个样品的熔点同时使用数码相机识别最小的样本内的变化,允许精确和可靠的自动识别你的熔点材料。The SMP40 accurately identifies the melting point of up to three samples simultaneously using a digital camera to identify the smallest of changes within the sample, allowing accurate and reliable automatic identification of the melting point of your material.

存储和连接

SMP40可以保留约200个视频结果，以备日后查看。另外本机具有USB端口，用于连接Microsoft®ActivSync闪存驱动器或PC机，所以视频文件可以更长久地存储作为一个长期记录。

Storage and connectivity

The SMP40 can retain approximately 200 results with videos, for reviewing at a later date. Alternatively the unit has USB ports for connection to a flash drive or PC via Microsoft® ActivSync, so the video files can be more permanently stored as a long term record.

区块清洗

某种情况下，熔点测定仪区块不可避免的将需要清洁。SMP40巧妙设计方便进入区块，使这必须的工作尽可能容易。

Block cleaning

It is inevitable that at some point in the life of a melting point apparatus, the block will need cleaning. The SMP40 has been cleverly designed to allow easy access to the block, to make this necessary job as easy as possible.

5.7“彩色VGA，触摸屏显示器

SMP40的所有控制都是通过彩色触摸屏显示。用户界面已经定制设计熔点的应用程序和快捷，易于操作。屏幕上，该样品的全彩显示屏中显示的实时性，以防万一你要检查自动结果。一旦样品已运行时，视频文件将被保留为标准的AVI文件，可以查看本机上的事件之后，或转移到PC上保留长期的可追溯性。

5.7” color VGA, touch-screen display

All control of the SMP40 is via the color touch-screen display. The user interface has been custom designed for melting point applications and is quick and easy to navigate. On the screen, a full color display of the samples is shown in real-time, just in case you want to check on the automatic result. Once samples have been run, the video files are retained as standard .avi files and can be viewed on the unit after the event, or transferred to PC to retain traceability long term.

安全防护罩

SMP40采用了安全防护罩的设计，它加载时，保护你的样品从偶然撞击。引擎盖也作为一个光盾，确保在周围环境光线条件调整不会影响自动熔点测定。

Protective safety hood

The design on the SMP40 utilizes a protective safety hood, which when loaded, protects your samples from accidental sideswipes. The hood also acts as a light shield ensuring that adjustments in the ambient lighting conditions don’t affect the automatic melting point determination.
