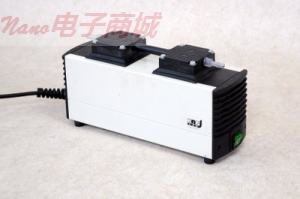

KNF Neuberger Pump Liquid Transfer Diaphragm NF1.300FT18S

KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP

凯恩孚泵业聚四氟乙烯DIAPH34LPM1.5TOR115V N842.3FTP是众多质量实验室和科学的产品，我们必须提供非常有竞争力的价格。凯恩孚泵业聚四氟乙烯DIAPH34LPM1.5TOR115V N842.3FTP / 26678-020是广泛选择的凯恩孚实验室真空泵的一部分。结合优秀的品质和合理的价格，在凯恩孚泵业聚四氟乙烯DIAPH34LPM1.5TOR115V N842.3FTP / 26678-020能满足您的科研需求的同时，良好的价值为预算紧张的终端用户仍然提供。如果您对我们的任何实验室真空水泵有任何疑问，请不要犹豫联系我们的客户服务，为进一步指导。

这些无油真空泵具有含氟聚合物树脂的头和的Kalrez *树脂阀用于处理侵略性腐蚀性而不会损坏泵的风险。该泵可用于干燥凝胶，真空浓缩，真空烤箱，蒸馏和旋转蒸发设备。上的全氟树脂多端口阀容忍偶尔摄入的液体没有损坏或真空性能下降。含氟聚合物树脂头不剥离或腐蚀时，接触到大多数溶剂。

单级泵非常适合中等真空应用。两级10L /分钟。泵非常适合需要低流速小的真空作业。两级20L /分钟。泵是理想的低（35至60℃）蒸馏和介质（60到80℃）的BP的溶剂。泵26678-016和14224-134对于介质（60至80℃）和高（80〜110℃）的BP的溶剂的蒸馏是有用的。深真空泵26678-020和14224-136设计用于回流反应和用于蒸馏难以蒸发的溶剂，例如水和高（> 110℃）的BP的溶剂。

并联泵头部和26678-024 14224-138是理想的高流量真空低BP溶剂大型蒸馏（35〜60℃）。

400毫升干冰冷阱（26678-056）的玻璃主体和PLEXIGLAS®*盖子。建议作为预阱收集液体和减少处理时间与泵在旋转蒸发，蒸馏，凝胶干燥，真空浓缩，并真空炉中使用时。为了获得最大的效率，在干冰阱应放置在泵之前。

规格为KNF Neuberger的泵聚四氟乙烯DIAPH34LPM1.5TOR115V N842.3FTP：流速，升/分。 （CFM）：34（1.2）真空，托（汞柱）：1.5（29.9）外形尺寸，长x宽x高，厘米（英寸）：33×17×22（13×十六分之六百一十一x16分之811 ）电：115V，60HzShip重量，公斤（磅）：12.2（26.9）凯恩孚编号：N842.3FTPUnit：每个

（请注意，本说明书和库存的照片可能不对应于上面列出的具体型号）

我们 敢100%的保证 我们提供的产品正是您在寻找的！联系我们！填写我们的询价很简单，我们更乐意有机会与您的采购部门合作，以便双方在任何特定的产品上获得获得最佳的报价 。

KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP / 26678-020 is part of a wide selection of KNF Neuberger Laboratory vacuum pumps. Combining excellent quality with an affordable price, the KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP / 26678-020 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.

These oil-free vacuum pumps feature fluoropolymer resin heads and Kalrez* resin valves for handling aggressive corrosives without the risk of damaging the pump. The pumps can be used with gel drying, vacuum concentration, vacuum ovens, distillation, and rotary evaporation equipment. The Kalrez resin multi-port valves tolerate ingestion of occasional liquids without damage or degradation of vacuum performance. The fluoropolymer resin heads do not peel or corrode when exposed to most solvents.

Single-stage pumps are ideal for moderate vacuum applications. Two-stage 10L/min. pumps are ideal for small vacuum jobs that require a low flow rate. Two-stage 20L/min. pumps are ideal for the distillation of low (35 to 60°C) and medium (60 to 80°C) BP solvents. Pumps 26678-016 and 14224-134 are useful for the distillation of medium (60 to 80°C) and high (80 to 110°C) BP solvents. Deep vacuum pumps 26678-020 and 14224-136 are designed for reflux reactions and for distilling difficult-to-evaporate solvents such as water and high (>110°C) BP solvents.

Parallel head pumps 26678-024 and 14224-138 are ideal for high-flow vacuum for large scale distillation of low BP solvents (35 to 60°C).

The 400mL dry ice trap (26678-056) has a glass body and a Plexiglas®* lid. It is recommended as a pre-trap to collect liquids and reduce processing time when used with pumps in rotary evaporation, distillation, gel drying, vacuum concentration, and vacuum ovens. For maximum efficiency, the dry ice trap should be placed before the pump.

Specifications for KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP:Flow Rate,L/min. (cfm):34 (1.2)Vacuum, Torr(in. Hg):1.5 (29.9) Dimensions, L x W x H, cm (in.):33 x 17 x 22 (13 x 611/16 x 811/16) Electrical:115V, 60HzShip Wt.,kg (lbs.):12.2 (26.9) KNF Neuberger No.:N842.3FTPUnit:Each

(Please note that the description and stock photo may not correspond to the specific model listed above)

We have a 100% Satisfaction Guarantee to ensure that every laboratory product you receive is exactly what you are looking for! Contact us TODAY! Filling out our RFQ is very simple and we are more than happy to have the opportunity to work with your procurement department to get the best quote for any particular product you have in mind.

Nano电子商城-亚太领先的MRO产品资讯平台！ Nano电子商城还为您提供专业的技术支持和具有竞争力的价格，请您放心购买！ Nano电子商城声明: 因KNF Neuberger会在没有任何提前通知的情况下更改KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP包装、产地或者一些附件，Nano电子商城不能确保客户收到的KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP与Nano电子商城网站KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP图片、产地、附件说明完全一致。只能确保KNF Neuberger Pump Ptfe DIAPH34LPM1.5TOR115V N842.3FTP为原厂正品！若本网站没有及时更新，敬请谅解！
