世界上最小、最轻且最便于携带的干式炉
- 世界上最小的干式炉
- 温度范围从 – 10 °C 到 375 °C
- O °C 时的准确度达 ± 0.25 °C，稳定性达 ± 0.05 °C
- RS-232 接口，带 9930 接口 v3.81 软件
Fluke Calibration 的便携干式炉系列产品简直令人惊叹。它们是世界上最小、最轻且最便于携带的干式炉。现在，这些产品更是得到了前所未有的改善

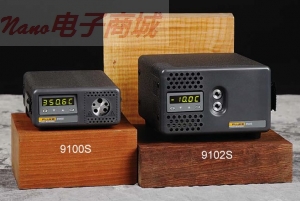

9100S 干式炉
自从我们推出世界上首款真正的手持干式炉以来，众多厂商纷纷试图效仿 - 结果也都徒劳无功。尽管 9100S 的尺寸较小（2¼ 英寸高，5 英寸宽），且重量也很轻，但仍然是世界上同类干式炉中性能最好的。
而且，9100S 既简单易用，又轻巧方便。所有人都能在不到 15 分钟之内学会如何使用。其温度范围达到 375 °C (707 °F)，非常适合用于在现场校验热电阻、热电偶以及小型双金属温度计。
将手持干式炉的插头插上，打开开关（请注意，这些井孔已固定且不可互换），用控制板按钮设定温度，然后将探头插入尺寸合适的井孔中。将您的装置读数与显示的温度或外部参考温度进行比较，差值即为装置的误差。9100S 配备 Fluke Calibration 专有的温度控制器，其显示分辨率为 0.1 度，准确度为 ± 0.5 °C，稳定性为 ± 0.1 °C，稳定时间仅为五分钟。
9102S 干式炉
对于在 – 10 °C 到 122 °C 温度范围内的操作，我们的 9102S 干式炉也是业内翘楚，其特点是稳定性可达 ± 0.05 °C。
此干式炉仅有 4 英寸高，6 英寸宽，最低温度达到 – 10 °C，包括可溯源至 NIST 的校准证书，且稳定性可达 ± 0.05 °C。对于需要在低于环境温度的条件下执行校准工作的量规表、数字温度计、球状开关及其他传感器而言，9102S 是一项绝佳选择。
9102S 具有两个井孔，因而可将其中一个用于插入参考温度计，以提高准确度。两个井孔直径均为 1/2 英寸，每一个都有几乎可供任何尺寸的传感器使用的插块。9102S 还具有电池组选项，在交流电源不可用时，该选项可提供约 4 小时的现场使用时间
| 规格参数 | 9100S | 9102S |
| 量程 | 35 °C 到 375 °C（95 °F 到 707 °F） | 在 23 °C 环境温度下为 – 10 °C 到 122 °C（14 °F 到 252 °F） |
| 准确度 | 50 °C 的条件下为 ± 0.25 °C；100 °C 的条件下为 ± 0.25 °C；375 °C 的条件下为 ± 0.5 °C | ±0.25℃ |
| 稳定性 | 50 °C 的条件下为 ± 0.07 °C；100 °C 的条件下为 ± 0.1 °C；375 °C 的条件下为 ± 0.3 °C |
| 井孔间的均匀性 | 相似尺寸的传感器在井孔内等深处为 ± 0.2 °C |
| 加热时间 | 35 °C 到 375 °C：9.5 分钟 | 环境温度到 100 °C：10 分钟 |
| 稳定时间 | 5 分钟 | 7 分钟 |
| 冷却时间 | 375 °C 到 100 °C：14 分钟 | 环境温度到 0 °C：10 分钟 |
| 井深 | 102 mm（4 英寸）；1.6 mm（1/16 英寸）的孔深度为 89 mm（3.5 英寸） | 102 mm (4 英寸) |
| 可拆卸插块 | 不适用 | 可用于 1.6 mm（1/16 英寸）到 11.1 mm（7/16 英寸）的尺寸 [包括 6.4 mm（1/4 英寸）和 4.8 mm（3/16 英寸）] |
| 电源 | 115 V 交流电 (± 10%)，55 – 65 Hz，1.5 A，或者 230 V 交流电 (± 10%)，0.8 A，45 – 55 Hz，175 W | 94 - 234 V 交流电 (± 10%)，50/60 Hz，60 W；或者 12 V 直流电 |
| 尺寸（高×宽×厚） | 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 英寸) | 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 英寸) |
| 重量 | 1 kg（2 磅 3 oz） | 1.8 kg（4 磅） |
| 计算机接口 | 随附 RS-232 及免费的 Interface-it 软件 |
| 可溯源至 NIST 的校准证书 | 50 °C、100 °C、150 °C、200 °C、250 °C、300 °C 及 375 °C 时的数据 | - 10 °C、0 °C、25 °C、50 °C、75 °C、100 °C 及 122 °C 时的数据 |
| 9100S-A | HDRC 手持式干井 A
| 配件 | 描述 |
|---|
| 9300 | 坚固型机套：9100s
| | G3P9100S-STD | Three-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | G5P9100S-STD | Five-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | GCP9100S-STD | One-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S3P9100S-STD | Three-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S5P9100S-STD | Five-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | SCP9100S-STD | One-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
|
|
| 9100S-B | HDRC 手持式干井 B
| 配件 | 描述 |
|---|
| 9300 | 坚固型机套：9100s
| | G3P9100S-STD | Three-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | G5P9100S-STD | Five-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | GCP9100S-STD | One-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S3P9100S-STD | Three-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S5P9100S-STD | Five-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | SCP9100S-STD | One-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
|
|
| 9100S-C | HDRC 手持式干井 C
| 配件 | 描述 |
|---|
| 9300 | 坚固型机套：9100s
| | G3P9100S-STD | Three-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | G5P9100S-STD | Five-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | GCP9100S-STD | One-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S3P9100S-STD | Three-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S5P9100S-STD | Five-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | SCP9100S-STD | One-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
|
|
| 9100S-D | HDRC 手持式干井 D
| 配件 | 描述 |
|---|
| 9300 | 坚固型机套：9100s
| | G3P9100S-STD | Three-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | G5P9100S-STD | Five-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | GCP9100S-STD | One-year Gold CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S3P9100S-STD | Three-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | S5P9100S-STD | Five-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
| | SCP9100S-STD | One-year Silver CarePlan with annual standard calibration, Instrument covered: 9100S, HANDHELD DRYWELL
|
|
| 9102S | HDRC 手持式干井
| 配件 | 描述 |
|---|
| 3102-0 | 空插筒：9102S
| | 3102-1 | 插筒，1/16 in (1.6 mm)：9102S
| | 3102-2 | 插筒，1/8 in (3.2 mm)：9102S
| | 3102-3 | 插筒，3/16 in (4.8 mm)：9102S
| | 3102-4 | 插筒，1/4 in (6.4 mm)：9102S
| | 3102-5 | 插筒，5/16 in (7.9 mm)：9102S
| | 3102-6 | 插筒，3/8 in (9.5 mm)：9102S
| | 3102-7 | 插筒，7/16 in (11.1 mm)：9102S
| | 3102-8 | 插筒，5/32 in (4 mm)：9102S
| | 9308 | 坚固型机套：9102、9132、9140
| | G3P9102S-STD | Three-year Gold CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
| | G5P9102S-STD | Five-year Gold CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
| | GCP9102S-STD | One-year Gold CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
| | S3P9102S-STD | Three-year Silver CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
| | S5P9102S-STD | Five-year Silver CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
| | SCP9102S-STD | One-year Silver CarePlan with annual standard calibration, Instrument covered: 9102S, HANDHELD DRYWELL
|
|
