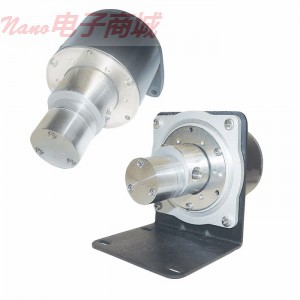

Micropump® L24154 齿轮泵，毫升/转，PPS，PTFE，4 - 20 mA速度控制

Micropump® 齿轮泵，毫升/转，PPS，PTFE，4 - 20 mA速度控制

Gear Pump, mL/rev, PPs, PTFE, 4 - 20 mA Speed Control

紧凑型无刷直流电机电磁驱动泵

变速电子控制器

流畅，无脉流

磁驱动，精密齿轮泵提供平稳，准确，无脉冲流。扭矩改进和紧凑的尺寸达到，利用钕铁硼磁体。变速操作是通过使用一个0到5 VDC输入信号，4至20 mA电流环路，或手动控制的驱动器与热和过载保护。 吸鞋的设计使泵（型号：74215 - **）补偿磨损从而保持高容积效率。 腔设计（型号74445 - **）提供更高的提升能力和适度的压力处理能力限制齿轮泵撬的好处是一个多功能的工具，用于各种行业，包括化工，食品，半导体和制药生产。通常情况下，一台齿轮泵撬来自一个共同的双工和三缸两个品种。许多用户选择这个系统的时候，他们正在处理厚，但光滑的物质。当你购买齿轮泵防滑系统，一个标准的齿轮泵，标定柱，安全阀，稀释后静态混合器。没有组件通常是必需的。您可以添加附件，如坦克，过滤器和搅拌器。校准列允许您的系统和精确的流量通过溢流阀从您的系统中建立防止高压。静态混合允许水或其它流体混在所泵送的任何化学品，使得齿轮泵防滑理想使用的聚合物和流体具有不同的密度和粘度参数。

Compact Brushless DC Electromagnetic Drive Pump

Variable speed electronic controller

Delivers smooth, pulseless flow

Magnetically driven, precision-geared pumps provide smooth, accurate, pulseless flow. Torque improvements and compact size are achieved by utilizing NdFeB magnets. Variable speed operation is accomplished by using a 0 to 5 VDC input signal, a 4 to 20 mA current loop, or a manually controlled drive with thermal and overload protection.

The Suction Shoe design (Models: 74215-**) allows the pump to compensate for wear thus maintaining high volumetric efficiency.

The Cavity design (Models 74445-**) offers the benefits of higher lift capability and moderate pressure capability.A gear pump skid is a versatile tool used in various industries including in the chemical, food, semiconductor and pharmaceutical production. Typically a gear pump skid comes in two varieties—a common duplex and a triplex. Many users opt for this system when they are dealing with thick, but smooth, substances. When you buy gear pump skid system you will usually receive a standard gear pump, calibration columns, relief valve, and post dilution with static mixer. No assembly is usually required. You can add on accessories such as tanks, filters and agitators. The calibration columns allow precise flow through your system and the relief valve prevents high pressure from building up in your system. The static mix allows water or other fluids to be mixed in with whatever chemical you are pumping which makes a gear pump skid ideal for working with polymers and fluids that have differing density and viscosity parameters.
